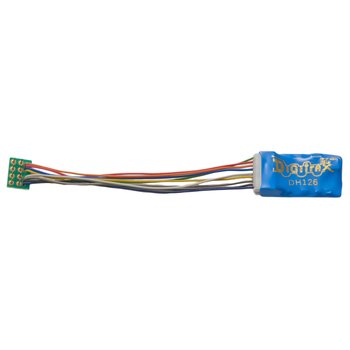

DH126P - 1.5 Amp Economy Decoder with Digitrax Easy Connect 9 Pin to DCC Medium Plug - 3.0 inch harness

Specifications:
Size: 0.672 x 1.074 x 0.259 inches (17.08mm x 27.28mm x 6.6mm)
Installation: DCC Medium Plug Long Harness
Function Outputs: 2
Function Type: FX3
Features: Series 6
For Use With: PX112-2
Current Rating-Functions: 0.5 Amps total all functions
Current Rating: 1.5/2.0 Amps Max
Warranty: No Worries Warranty

FX3 Function outputs for prototypical lighting effects and on/off control:
- Constant Brightness Lighting with directional or independent control.
- Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
- FX3 & Standard Function Qualifiers operate functions based on direction.
- F0 on or off, direction and F0, and whether loco is moving.
- FX3 effects optimized for selectable LED or lamp operation.
- Configurable FX3 Pulse Function available on all function outputs.
- Function Remapping for custom function setup.
- Master Light Switch turns off all lights & functions with one keystroke.
- Advanced Consist Function Controls.

Digitrax LocoMotion System-Your locomotives look like the real thing.
- The Digitrax LocoMotion System makes them run like the real thing, too!
- Torque Compensation for smooth as silk silent operation.
- 128 Speed Step operation (14 or 28 steps can also be used).
- Momentum with acceleration and deceleration.
- Normal Direction of Travel is user selectable.
- Switching Speed feature for easier and faster access to yard speeds.
- 3 Step Speed Tables set start, mid and max voltage for custom control.
- 28 Step Speed Tables with 256 level resolution for precise control.

- Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment.
- Series 6 Decoder Features.
- 2 Digit and 4 Digit Addressing.
- Basic, Advanced & Universal Consisting.
- SuperSonic motor drive for silent operation.
- Direct mode programming.
- Decoder Reset CV with or without speed table reset.
- Transponder Equipped ready for transponding on your Layout.
- Motor Isolation Protection helps prevent damage to your decoder.
- DCC Compatible.
- FCC Part 15, Class B RFI compliant.
