HO/N 1 Amp SoundFX & Function Decoder

Features:

Wired Mobile Decoder with SoundFX & FX3 Function for most HO and many N scale Locomotives.

Preloaded with selectable generic steam and diesel sound schemes.

Visit Digitrax Sound Depot to learn how to customize the sound project that is included with the decoder and how to download different sound projects.

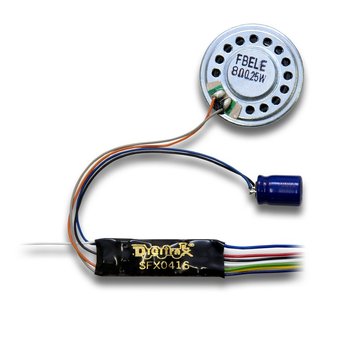

Includes 28mm 8 Ohm Speaker & 330uF Capacitor

Please Note: The SFX0416 has no motor functions and is used in conjunction with a standard mobile decoder to add sound and additional functions to the locomotive.

Regarding N Scale applications:

Although the SFX0416 decoder PCB is physically small enough to fit into many types of N Scale rolling stock and dummy locomotives, for N Scale applications the standard 28mm speaker must be replaced with a smaller speaker and installation of the capacitor can be omitted.

Finally, the SFX0416 is an add-on type SoundFX decoder, meaning it works with a standard DCC motor decoder in locomotive applications. N-Scale locomotives generally do not have the necessary space for both the SFX0416 and a motor decoder inside the locomotive. To use this sound and function decoder as an add on to an existing mobile decoder in an N Scale locomotive, you can install it in an N Scale car that runs behind the locomotive. If you are installing a sound decoder in a locomotive that does not already have a mobile decoder, one of our N Scale motor, sound & function decoders would be the best choice for N scale locomotive installations.

SPECIFICATIONS:

Current Rating-Motor - Not a motor decoder

Size - 1.22 x 0.42 x 0.21 inches (31mm x 10.6mm x 5.3mm)

Installation - Wired

Function Outputs - 4-200mA

Function Type - FX3

Speaker - 8 Ohm 28mm round

Capacitor - 330uF

Simultaneous Voices - 3

Onboard Sound Memory - 16 Megabit
