        SKU: ISE-CKT-XING-BASIC

        RoadReady Basic Grade Crossing Controller

        Not rated yet
        0
        • CA$89.99
        Out of stock

        Iowa Scaled Engineering CKT-XING-BASIC - RoadReady Basic Grade Crossing Controller

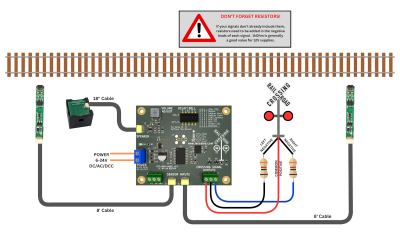

        The RoadReady Basic Crossing Controller is a simple way to control model railroad grade crossing lights and play a bell sound. It includes two TrainSpotter optical detectors, and has all seven of our standard SoundBytes crossing bell sounds built in. It will drive any number of common anode (common positive) LED crossing signals, the most common type found on the market today. The crossing will start when one of the detectors senses a train above it, and will continue for a selectable time after all detectors are clear.

        Additional TrainSpotter detectors can be connected for additional tracks, or for additional detection distance from the crossing.

        Note: This basic controller is only an island circuit, meaning it does not implement approach sensors. It is intended for a crossing with lights and bell only and cannot control crossing gates.

        Features

        • Plug-and-play detectors and speaker connections - no fiddly terminal blocks!
        • Rock solid TrainSpotter optical detection - works in any ambient lighting conditions
        • Seven different built-in prototypical crossing bell sounds
        • Configurable turn-off delay after detectors clear
        • Easy expansion with additional detectors for more tracks
        • Works with common anode (common positive) LED grade crossing signals
        • Robust, protected signal output drivers will handle 1 amp of current
        • Includes control board, two (2) TrainSpotter optical detectors, and speaker
        • Universal Power - works from 6V to 24V DC, AC, or DCC

        Specifications

        Control Board: 3.0"(L) x 2.5"(W) x 0.5"(H)

        Documents

        The complete design files are available on GitHub.

        User Manual

        Schematic
