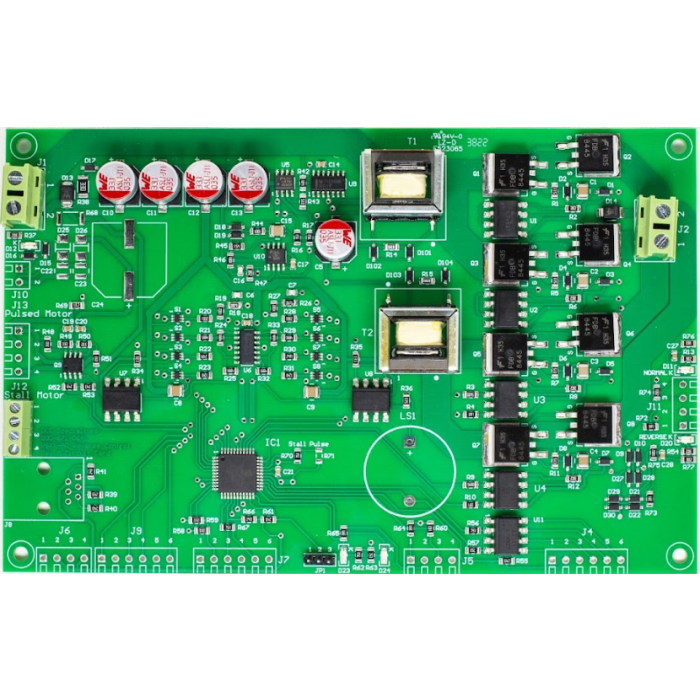

PSXX-AR - Power Shield Auto Reverser/Circuit Breaker/Snap FEATURES: - Auto reverser - Circuit breaker - Automatically control reverse loop turnouts - Accessroy decoder for turnout solenoid motors: Kato Peco Atlas - Block detection - Network Status Feedback - Outputs for LED Indicators: Remote LEDs can be added to monitor the input/output power and the status. - 4 Indicator LEDs on the board: Booster power (green), 2 x Block power (green), Block shorted (red) LED output DCC power in from booster. LED output DCC power out to track/LED output turnout position/track phase. LED output short circuit. LED output block occupied. - Select Trip current values 1 ? 10 in integer steps (1, 2, 3, ?., 10) using CV 49 - Jumper Select Current limits of 1, 2, 3, or 4 amperes - Power On/Off by DCC: Turn on/off output track power with your DCC Throttle! - Manual or Automatic Reset: Automatic reset: Breaker tries to reset every 2 seconds. Manual reset: Once the breaker trips, it remains off, ensuring complete isolation of the faulty block. The breaker is reset either by a switch or by a DCC command. - All Solid State Operation: Fast, solid state design with reliable quiet action. - Adaptive Load Reset: Electronically determines if the overload is a real short or due to excess capacitance in sound decoders or lighted passenger cars. - Auto Stop with DCC Reset: A photocell can be connected to a PSXX input. Normally, covering the photocell will not cause any action. If the photocell is armed with a DCC command, the PSXX will turn off the next time the photocell is covered. A DCC command can restore the track power when desired. - Photo Cell Controlled Block Power Off: Stop position control and occupancy detection for hidden tracks. - Block Detection: Either a photo cell or block current draw can be used to detect a train in a block and to trigger a Block Occupied output. The current trigger level is programmable. - Block Occupied Trip point can be automatically set to compensate for current flow in unoccupied block - Very Low Voltage Drop: Total breaker on resistance is less than 0.060 ohms, so the PSXX has a very low voltage drop even at high currents. Better than detectors that use a diode voltage drop. - Programmable Power Up Status: When power is applied to the layout, the PSXX can be set to always turn on, always remain off [power on as needed by DCC command], or to use the power status present when the layout was last shut down. - Network Feedback: Isolated outputs designed to provide Block Occupied, Block Shorted, and Power Status to a discrete interface for remote display or computer control. Will work with Digitrax LocoNet, NCE Cab Bus, ESU ECoS, and Lenz XpressNet interfaces. - System Reset: CV63=42 sets all CVs and addresses to original factory values. - Output for Audio Alert: An audible sounder can be added to the PSXX to provide an audible alert if there is a short. - No Power Supply Needed: The PSXX uses the track DCC power to supply its operating power. Each PSXX draws less than 0.04 amperes. - Easy to Install: With 4 mounting holes sized for a #6 screw. - Flash Programmable: The PSXX firmware can be updated by Tonys Train Exchange as new features become available or if older units need to be matched to a recent purchase. - Discrete Input allows on/off control of track voltage for yard or other track section isolation. Compatible with any system that has a relay or isolated transistor control output including LCC, WiFi, etc. or can be used with manual toggle switch. - +5V and Ground Outputs for powering LEDs, no resistors needed - Power On Status can be on, off (yard or staging sections), or status at power down.
