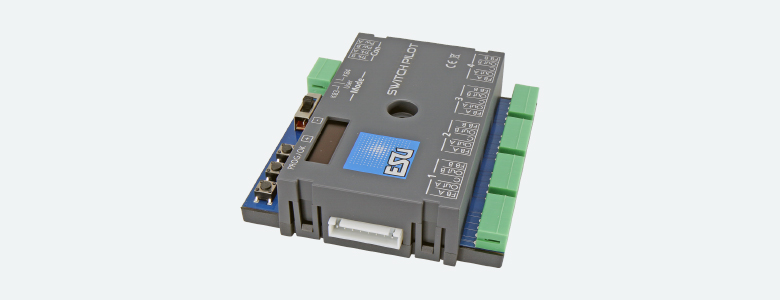

SwitchPilot 3 - Accessory Decoder - DCC/MM, 1A

SwitchPilot 3 decoders are optimized for stationary use on your system and can switch conventional double coil switch drives, light signals, magnetic uncouplers, light bulbs or other stationary consumption. In order to facilitate the rather cumbersome configuration of magnetic article decoders, the SwitchPilot 3 has an innovative operating concept consisting of a 4-line, illuminated OLED display and three input buttons.

MODES:
The SwitchPilot 3 is multi-protocol and can be used with workstations according to the Marklin Motorola system (e.g. 6021, Central Station or Mobile Station) as well as DCC-enabled control panels. The configuration can take place on both the main track and the programming track. Thanks to RailCom, CVs can also be read out.

FEEDBACK:
Since the SwitchPilot 3 is RailCom-capable, all settings can be read out and changed directly in the built-in state on request. In combination with an ECoS as an ideal partner, the SwitchPilot 3 can record and display the actual turnout setting with appropriately prepared turnout drives. Finally, you have the certainty that your switch has switched correctly!

SET:
The SwitchPilot 3 can be flexibly adjusted either on the programming track with DCC control panels or on the main track with POM (Programming on Main) or can also be read out via RailCom CVs. On request, he also learns the addresses directly via a programming button. The easiest way to set is, of course, with the integrated OLED display and the three input buttons: All Settings can be checked directly on the decoder and changed on request. Programming with the help of your control panel is not required. It really can not be any easier! The ESU LokProgrammer can be used for firmware updates.
