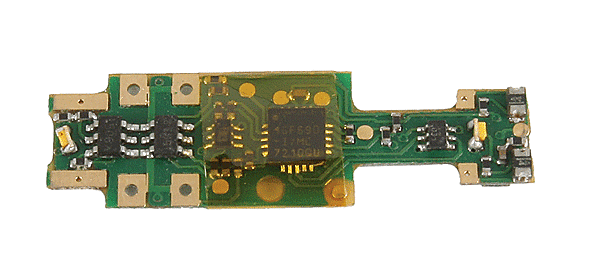

Digitrax DN123K3 - N Scale Plug N' Play Decoders -- For Kato NW2 - 1.0/1.5-Amp, 2 FX3 Functions Rated At .5Amp, Golden White LED

Digitrax DN123K3 - N Scale Plug N' Play Decoders -- For Kato NW2 - 1.0/1.5-Amp, 2 FX3 Functions Rated At .5Amp, Golden White LED

Product Information

This 6 function decoder is rated at 1.5A (2A peak) and has 6 FX3 functions at .5A.

 Supports Digitrax FX3 functions and 14, 28 or 128-step speed control.

 Other features include:

 Torque compensation for smooth, silent operation.

 Momentum with acceleration and deceleration.

 User selectable normal direction of travel.

 Switching speed feature for easier and faster access to yard speeds.

 Three-step speed tables set start, mid and max voltage for custom control.

 28-step speed tables with 256 level resolution for precise control.

 SuperSonic(TM) motor drive for silent operation.

 FX3 function outputs for prototypical lighting effects:

 Constant brightness lighting with directional or independent control

 Realistic effects such as ditch lights, Mars lights, strobes, and more.

 Dynamic and static qualifiers operate functions based on direction, F0 on or off, loco direction and F0, and whether loco is moving.

 Function remapping for custom setup.

 Master light switch turns off all lights & functions with one keystroke.

 Advanced consist function controls

 Transponder equipped

 All-mode programming with operations mode read back (reads back CV values on the mainline)

 Decoder reset CV with or without speed table reset.

 Motor isolation protection prevents decoder damage.

 Basic, advanced & universal consisting

 Two- or four digit addressing

 DCC compatible

 Works with most DCC-ready Z, N, and HO Scale locomotives up to 18V track voltage

 FCC Part 15, Class B RFI compliant

 Decoder lock
