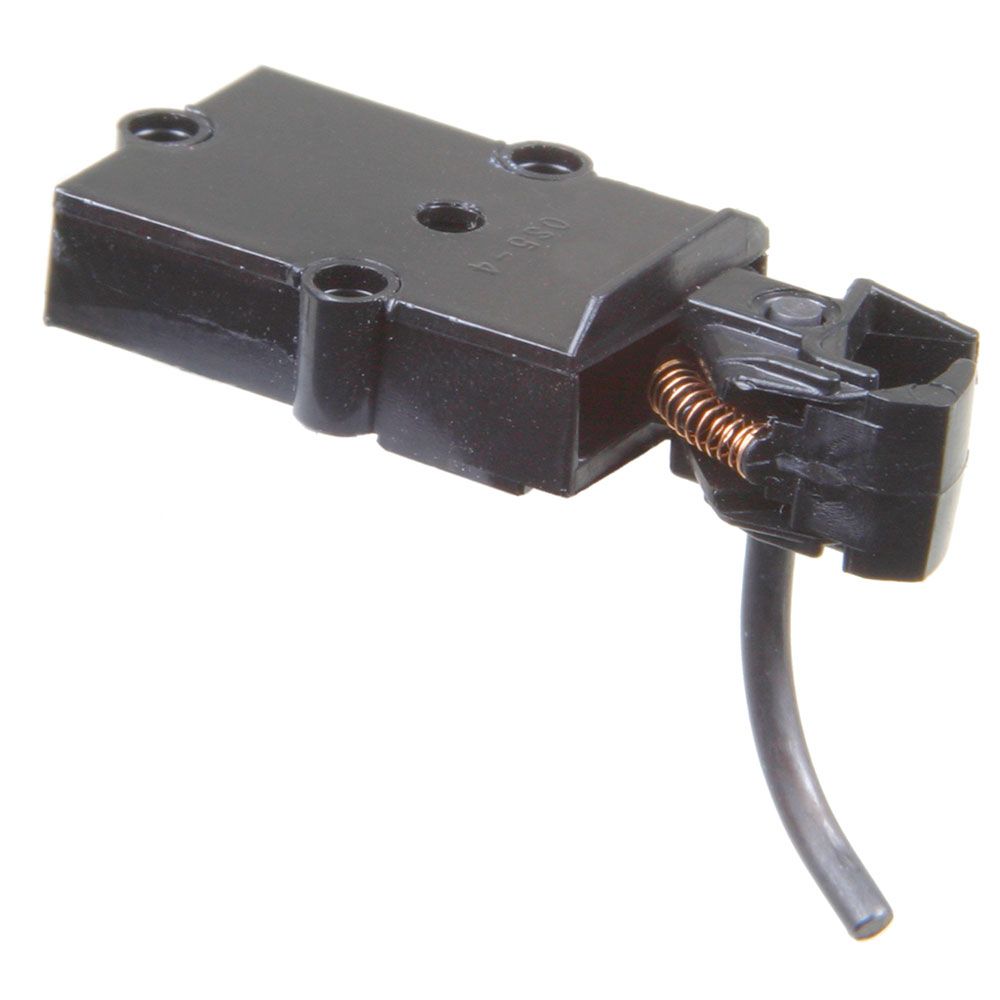

Kadee 802 - S Scale Plastic Coupler & Gearbox - Black
SKU: 380-802
This industry leading coupler features Plastic Couplers, and #846 S Scale centering spring and comes complete with Plastic Gearboxes and lids. 0-48 Mounting Screws are included.
S-Scale
- Simple Drop in Design
- Trouble Free Operation
- World-Renowned Quality & Performance
- They just Last & Last & Last...
Package Includes:
- (4) Each #802 Plastic Couplers - Black
- (4) Each #802 Plastic Gearboxes & lids - Black
- (6) Each #846 S Scale Centering Springs
- (2) Extra #847 S Scale Knuckle Springs
- (8) Each 0-48 x 3/8 Screws
- (8) Each 0-48 x 1/4 Screws
#802 Plastic Coupler Features:
| Material | - Plastic |
| Shank Length | - (9/32") (Back of head to center hole of Draft Gearbox) |
| Coupler Offset | - Centerset |
| Centering Spring | - #846 S Scale Centering Springs |
| Knuckle Spring | - #847 S Scale Knuckle Springs |
| Works In Place of | - #808 Couplers |
| Works With | - S Scale Draft Gearboxes |
#802 Plastic Draft Gearboxes & Lids Features:
| Material | - Plastic |
| Dimensions | - 37/64"L x 3/8"W x 11/64"H |
| Works With | - #808 Couplers |
Mounting Specifications:
| Mounting Height | - 19/32" |
| Centerline | - 17/32" |
| Trip Pin Height | - 1/16" |
| Mounting Holes | - 0-48 or 0-80 screws are the most commonly used screws. (Screw length will vary) |
