Decoder Buddy Mini 2.2K Axial
The Decoder Buddy Mini was developed to fit into smaller steam and diesel applications. There has also been interest in HOn3 and S-Gauge applications.

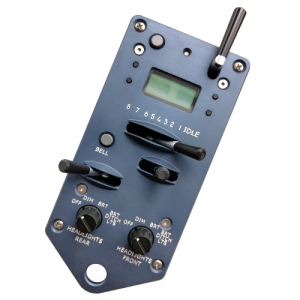

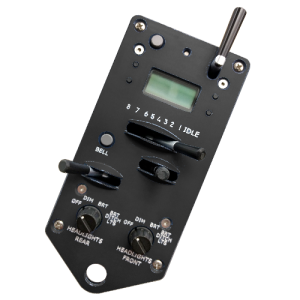

ProtoThrottle Pocket
Store and protect your ProtoThrottle with the ProtoThrottle Pocket. Made from strong and durable black PETG plastic, this holder will cradle your throttle securely and out of the way when not in use, while still providing access to the controls if needed. Three mounting holes in the back make for easy attachment to a wall or the layout fascia.
Specifications:
3.4(W) x 2.225(D) x 4(H) inches

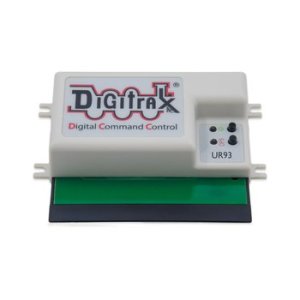

UR93 Features:
Digitrax Duplex Radio Transceiver on LocoNet wire infrastructure (no IR support).
More than double the radio range of UR92 Duplex units.
Improved multi-path performance for cluttered layouts.
Plug and Play setup, PS14 Universal power supply included.
Compatible to be mixed with UR92 LocoNet Duplex Radio systems, for added coverage and improved reception.
Status LEDS.
Supports combinations of DT602D/DE and DT500D, DT402D and UT4D Duplex Radio throttles.
UR93E available for countries that require EN-300-328 Wireless conformity.
NCE 229 Six pack of 1 Amp replacement lamps for CP6

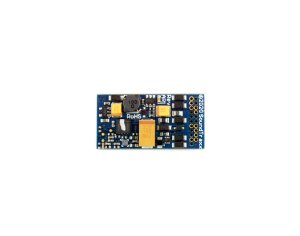

Tsunami2 Digital Sound Decoder - 21-Pin NEM form factor - Electric Locomotives
Dimensions: 30.5 x 15.5 x 6.5mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 8
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 16
The NEW TSU-21PNEM8 is a 1-amp Digital Sound Decoder with 8 function outputs. It is designed for easy plug-in operation when mated to a 21-pin NEM connector. You will feel like you are in the cab with the amazing new features that Tsunami2 has to offer including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and firebox flicker. We also offer a large selection of selectable sound effects including: exhaust chuffs(10), prime movers (up to 12), bells (12), Whistles (90), airhorns (40+), couplers, dynamos and more!

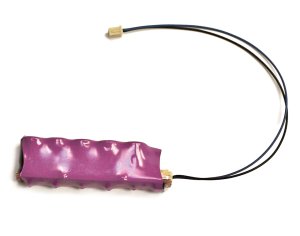

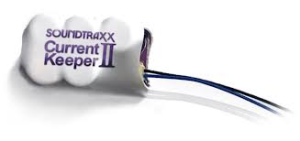

The TSU-21PNEM8 can be wired to a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.
Illuminator Lighting and Signal Decoder - Light-It -- For Use with Woodland(R)Just Plug(R) Lighting System

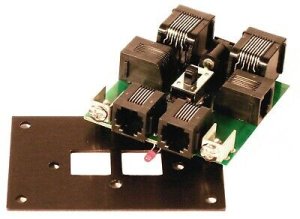

ECoSLink Terminal Bus Distribution Plate - 6 Slave Jacks With 0.9m Cable
If your train layout is growing and you need additional ECoSBoost boosters and ECoSDetector feedback modules to connect to your ECoS command station, and you are running out of connectors, you should buy the ECoSlink Terminal!
More room:
The ECoSlink Terminal will be connected to the ECoS or central station via the provided bus cable to the extend jack. It offers on the front panel two jacks for hand controllers (e.g. mobile station) and at the back four sockets for devices mounted under the layout. These include mainly ECoSBoost booster and ECoSDetector feedback modules.
The ECoSlink Terminal can provide power to all attached devices either from the ECoS power supply, or for a section from an external power supply through the ECoSlink themselves. This is especially useful for larger systems with many hand controls, boosters and feedback modules.
More distance:
If more than one ECoSlink Terminal is used, the terminals can be connected to each other with standard Ethernet patch cables with RJ45 connectors. These patch cables can be purchased in any computer store in any length.
More organisation:
Each ECoSlink Terminal is usually at the front panel of the layout installed: Only the front panel is visible. This reduces the cable clutter under the layout.
More flexibility:
The ECoSlink Terminal can be used on ECoS and central station. The CAN bus is only passively distributed together with the supply and booster cables and the termination is ensured. The function is transparent for the digital control unit. Since an interference in the communication of the bus does not take place, thus alone decide the control unit and the connected devices whether they will work together.
NCE 153 HO N Scale Snap-It Quad- Mk2 - Four Snap-its on one board!
FOR TWIN COIL SWITCH MACHINES ONLY
All new easy programming!
Control for 4 twin coil solenoid type switch machines (Atlas, Peco, etc)
Supports the full range of DCC accessory addresses (1-2044)
Runs from track power or external 9-15 Volt DC power supply
Easy address programming, no need to connect it to programming track
Inputs for local control panel push buttons
Simple hook up, 2 wires to the track, 2 wires to each switch machine
Easy programming! Control for 4 twin coil solenoid type switch machines. Supports the full range of DCC accessory addresses (1-2044). Runs from track power or external 9-15V DC power supply (sold separately). Easy address programming - no need to connect it to programming track. Inputs for local control and panel push buttons. Simple hook up: 2 wires to the track, 2 wires to each switch machine.

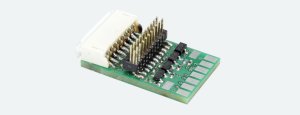

ESU 51967 Adapter Board for LokSound 3.5 or LokSound v3.0 w/21 pin
The 21 MTC adapter board is suitable for digitising a loco without interface and for the case you do not intend to wire the decoder freely.
The adapter board offers a possibility for installing a decoder with 21MTC connector. This decoder is simply plugged onto the board. At the other end 21 annular rings make a clean wiring of your loco possible. A neat conversion can be made via this adapter board and enables you to use all additional functions of the 21MTC connector (e.g. loud speaker outputs).
Tsunami 2 TSU-21 Pin PNEM Digital Sound Decoder for Electric Models
21Pin board
The TSU-21PNEM is a 1-amp Digital Sound Decoder with six function outputs designed for easy plug-in operation when mated to a 21-pin NEM connector. You will feel like you are in the cab with the amazing new features that Tsunami2 has to offer including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and firebox flicker. We also offer a large selection of selectable sound effects including: exhaust chuffs(10), prime movers (up to 12), bells (12), Whistles (90), airhorns (40+), couplers, dynamos and more!
The TSU-21PNEM can be wired to a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.
Dimensions: 30.5 x 15.5 x 6.5mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 6
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 16

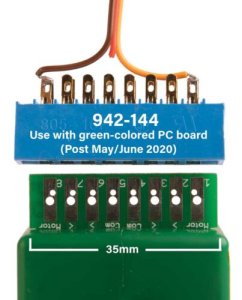

Edge Connector for Tortoise(TM) Switch Machine w/Green PC Board (2pk)
Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts! The system is expandable at any time to grow with your layout, and can be used with DCC- or DC-power (a DCC accessory decoder is integrated into the switch machine). The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include servo-based slow-motion Switch Machines, Power Distribution Block, LED panel indicator/control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.
Designed to simplify converting your existing Tortoise(TM) Switch Machine, the Edge Connector features:
- Plug and play wiring for Tortoise(TM) Switch Machines manufactured before June 2020 with smaller, tan PC board (sold separately).
- Includes 6 inch motor connection cable with plug for direct connection to Stall Motor Controller 942-161 (sold separately).

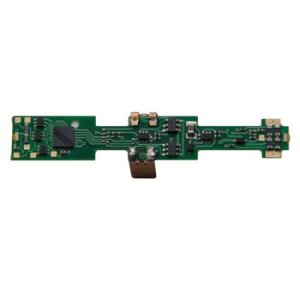

DN163A4
Board replacement decoder for Atlas N Scale GP7, GP9 and GP15-1, GP30, GP35 and similar locos
Golden-White LEDs for added realism
Decoder Lock equipped
1.50 Amp (2.0 Amps Peak)
Size 0.374 x 3.875 w/LEDs x 0.1570
9.5mm x 98.3mm x 4.0mm
Installation Board replacement decoder
Function Outputs 6-500mA
Function Type FX3
Features Series 3
Replaces DN163A2
No Worries Warranty
DH165L0 1.25 amp /2 Amp Peak
For Lifelike GP7,SD60 and others with DCC Medium plug arrangement.
Features:
Series 3 Decoder for Proto 2000 Plug ‘N Play Installation
Compatible with Sound Bug
Decoder Lock equipped
DN163K0B 1 Amp N Scale Mobile Decoder for Kato N scale F3 A & B
Features:
Designed to fit the Kato N scale F3 A & B
Golden-White LEDs for added realism
Decoder Lock equipped
DN163A3
Board replacement decoder for Atlas MP15 units
Golden-White LEDs for added realism
Decoder Lock equipped
1.00 Amp (2.0 Amps Peak)
Size 0.374†x 3.875†w/LEDs x 0.1570â€
9.5mm x 98.3mm x 4.0mm
Installation Board replacement decoder
Function Outputs 6-500mA
Function Type FX3
Features Series 3
H15/16-44 Atlas
Plug and play decoder for N-Scale Atlas H15-44 and H16-44, GP40-2, U25B, SD35, Trainmaster, B23-7 and others
Features of this decoder::
Preprogrammed marker lights change color depending on direction
Silent Running, torque compensated motor drive
Torque Compensation for ultra smooth low speed performance
Motor rating .7 Amp continuous, 1 Amp peak (stall)
All function outputs have lighting effects generators
Select from 15 different lighting effects
Full support for LED lighting
Decoder programming lock mechanism

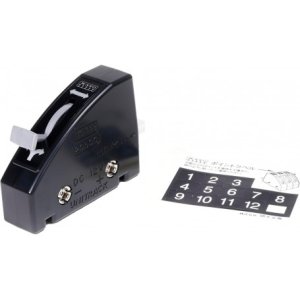

Switch Kat
Your Kato Unitrack N and HO Scale and LGB remote control turnouts can now be DCC controlled. The Switch-Kat provides connections for optional switch position indicator lights and -local control- pushbuttons. Simple installation, two wires to the track, two wires to the switch.
Shipped from Ontario Canada.

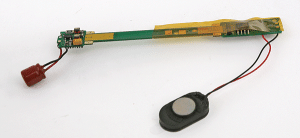

SDN144A1 w/Sound
Features:
Drop in Mobile Decoder for Atlas N Scale SD60/40 and similar Locomotives.
Preloaded with SD60/SD40 dual Sound Scheme
4 FX3 Functions
Factory 18mm x 10mm, 8 ohm speaker
Full Digitrax Series 4 mobile decoder feature set
Speed Tables
Simplified Scaleable Back EMF
Advanced Consisting
Forward and Reverse Trim
Transponding
Supersonic Motor Drive
Decoder Lock and much more
Use PR3 and SoundLoader Software to download your own fully customizable sound scheme to the decoder
No external sensor required for sound workload changes
Current Rating 1.00 Amp (1.25 Amps Peak)
Size 0.374inch x 3.875inch x 0.1570inch
9.5mm x 98.3mm x 4.0mm
Installation Drop in Mobile Decoder
Function Outputs 4-200mA
Function Type FX3
Small w/Attached D13NHJ Decoder
Direct plug into Athearn and other locos equipped with NMRA 9 pin DCC Quick Plug
Features
NCE No-Halt insurance technology, keeps locos moving over dirty track
Supplied as two pre-wired modules for easier, more flexible installation
Silent running torque compensated motor drive
Motor rating 1.3 amp continuous 2 amp peak (stall)
All four function outputs have lighting effects generators
Select from 15 different lighting effects
Full support for LED lighting

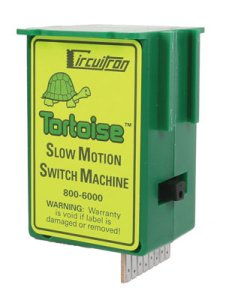

HO & N Scale Slow-Motion Tortoise Switch Machine (6/pk)
Extremely simple under-layout mounting and all linkage is included!
Dimensions: 2 x 2 x 3 1/4 inches
Use the following link to see the manual!
http://www.circuitron.com/index_files/INS/800-6000ins.pdf

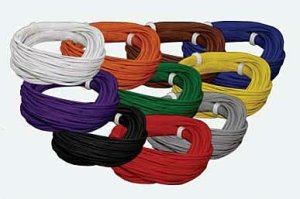

SoundTraxx - Ultra Flexible Hookup Wire, 10ft 30AWG, Blue
Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze.
Digitrax SE74 Signal Decoder
Fully connectorized installation.
Optional support for DCC 9-Aspect control mode, including Lunars.
Easy setup with Option Switches and LocoNet programming.
Configurable for four solenoid or four slow-motion turnout control.
8 Input lines for local control and sensors.
8 System routes with 8 entries each.
Advanced LocoNet configuration capability with Series7 style installation support using a DT602.
Ideal 30-107J Can Twist Wire Connector - Blue 10 pcs
Features
>Wire Combinations - single #14 with 1-4 22 AWG solid and/or stranded wires
Wire Combinations from 22 to 8 AWG solid and/or stranded wires
Heat-set spring threads
Flexible walls showing wires firmly connected
Easily removed for repeat useage
Quick pick up
CSA 22.2#1888 Certified
Min 3 No. 22 Max 3 No. 10
Shell Temperature Rating 105C/221F
HO Signal - Searchlight (Double Head-No Cabinet) - SP/SF

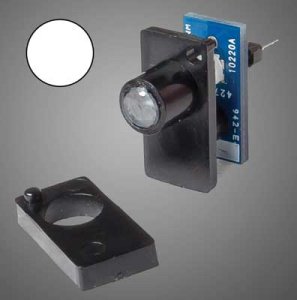

Illuminator Lighting and Signal Decoder - Light-It - For Use with Woodland Just Plug Lighting System (5-pack)
Cab Control Wireless DCC System w/WiFi Throttle
(7Amp, Set with power supply 110V-240VA, USA, Output 15-21V)
Cab Control Features:
- All DCC modes (14, 28, 128 speed steps) Long and short addresses
- Over 16,000 locomotives can be arranged and controlled
- Up to 28 functions per locomotive
- All Scales can be used with the Cab Control system with the variable voltage 7Amp Power Supply
Built-in WLAN Access Point:
- Creates a unique Wifi-Network for your Mobile Control II Wireless throttles
- Supports at least 32 Mobile Control II Wireless Controllers Compliant with all relevant IEEE WLAN standards.
- Suitable for use in America and Europe
- The Cab Control features a LAN port to connect the box to your home network.
- Via the home network, the Cab Control can be connected to Model Rail Road Control Software.
ECoSlink port:
- For easy connection with our ESU boosters, Cab Control supports ECoSlink, a high speed, CAN based bus system.
- The Cab Control built-in booster has so much power that, in most cases, you do not need additional ones.
HOOK UP:
Hook up is simple with the Cab Control system. All you have to do is plug the 7 Amp power supply into the Cab Control box and then hook up your Cab Control box to your track for track power and its ready to go! The wireless controllers automatically connect to the system via WLAN.
UPGRADABLE:
On occasion new features will be added to the Cab Control system. Gone are the days of having to send your DCC command station back to the manufacturer for updates! When a new update becomes available it is as simple as loading this to a USB Data stick and plugging it in to the back of the system. Easy!
PROTECTION:
Each Cab Control system meets the relevant requirements regarding safety and operation on a layout. The track outlet is protected against overload as well as short circuits. Each Cab Control system can differentiate between a genuine short, and a momentary current drain when passing over switches or gaps. We place value on the indestructibility of the device, just like we do with our mobile decoders.
EXPANSION:
As the Cab Control System uses the ESU Mobile Control II Wireless Throttles, expansion is easy as these throttles are already available and will connect automatically to the Integrated Control Unit. The system can also be used with the ECoSBoost Boosters using the ECoSlink Terminals when more power is needed for large layouts.

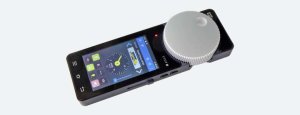

CAB CONTROL - HANDHELD WIRELESS THROTTLE
Ergonomics & Functionality Combined:
When you hold your Cab Control Throttle in your hands for the first time you will immediately notice its excellent ergonomics. All Parts of the screen can easily be reached with one hand, and unlike a cell phone throttle, the most important functions can even be reached without looking giving you the ability to watch your trains and not needing to watch your throttle. This is due to the central, motorized throttle knob with end stop. With this knob you can delicately control the speed of your trains and change direction.
For activating functions simply touch the icons on the display. The display also serves for changing functions ? exactly the same way as you know it from your mobile phone. Finally, two buttons each on either side serve for changing direction or triggering the most important functions. These side buttons are user editable giving you the choice of what you want to control with them.
Colorized Function Icons are displayed showing what function does what. Gone are the days of having to memorize what function button control what decoder feature.
Running Locomotives:
The Cab Control Throttles can control all locomotives registered in the system and supports 14, 28 or 128 speed steps. All of the important locomotive properties such as name, a picture, function mapping as well as easily identifiable icons for function buttons will be taken from the Integrated Control Unit and will be displayed correctly.
You may switch up to 28 functions for each locomotive, which, of course, can either be momentary or continuous functions. You read that correctly! EVERY Function Button can be momentary or latching depending on your use! No more limitations on how you function map your decoders.
As standards are constantly changing and the number of DCC function buttons is increased a simple update will allow for even more!
Controlling Accessories:
The Cab Control System has the ability to run over 1000 magnetic accessories!
More Fun in Operations:
The high resolution (480 x 800 pixels, 280 dpi), backlit TFT display of the CabControl Throttle always keeps you up to date on the most important operating parameters. Furthermore, you can see if another operator controls a certain locomotive or if an emergency stop has been triggered. The permanently installed, powerful Lithium polymer rechargeable battery will serve you right through the most extensive operating sessions giving 5-8 hours of operation based on how you are using your throttles. Recharge the batteries of your CabControl simply by using the USB port on the Integrated Control Unit and the supplied Micro USB Cable or the battery charger of your mobile phone or any other USB port.
Open Platform:
The Cab Control Throttles are based on the Android operating system. We have created a powerful basis for this open, globally used operating system: The ARM Cortex A8 microprocessor clocked with 1.3 GHz and controls a high resolution 3.2 inch TFT color display. A capacitive touch screen assures touch-free data entry. For communicating with the outside world there is an USB port and a WLAN interface. Thanks to the standardized radio control interface, trouble free operation of your layout can be assured at any time. The range can be extended with WLAN repeaters, if necessary.
Due to the open platform design you may add further apps for the Google Play Store at any time.

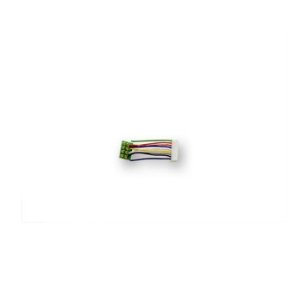

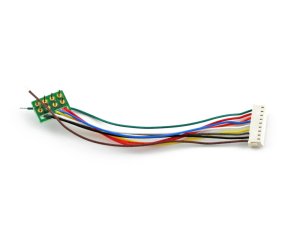

9-pin to DCC Medium Plug - Long Harness (3 inches)

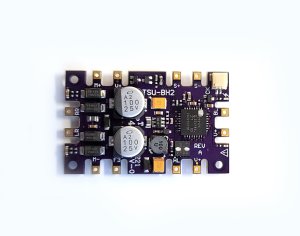

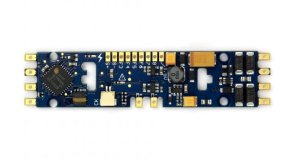

BH1 Tsunami 2 Sound Decoder - GE Diesel
Dimensions: 97 x 16 x 7.7mm
Max. Motor Stall Current: 2A
Max. Function Current: 100mA (each output)
Function Outputs: 8 LED-Friendly Outputs!
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 16
Get an easy upgrade for your Bachmann Sound Value diesel models with our newest Tsunami2 decoder! The TSU-BH1 offers 8 LED-friendly function outputs so resistors are not required for LEDs! (See the wiring diagrams under product documentation for more information). Light effects are fully remappable and offer full access to our 20+ HyperLight effects.
This decoder is available in 3 sound profiles EMD, GE, and ALCO. For an easy install, simply replace the Sound Value decoder and enjoy all of the Tsunami2 features you love!
This decoder is designed to replace the factory board in the following Bachmann Sound Value Diesel Models: FA-2, FB-2, S-4, E7-A, SD70ACe, ES44AC, GP30, GP38-2, GP40, GP7, and SD40-2.
Fun Tsunami2 features including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and more. We also offer a large selection of selectable sound effects including: prime movers (up to 12), bells (12), airhorns (40+), couplers, and more!
This decoder includes a connector to easily add a CurrentKeeper (P.N. 810140 or 810160) to maintain performance over dirty track and switches.
Digitrax RD2 Occupancy Detector Accessories - RD2 - Remote Sensing Diode - Use w/BDL168 (Sold Separately)
RD2 Remote Sensing Diodes for BDL16 series occupancy detectors
Remote sensing of 2 detection sections. Eliminates the need for long runs of heavy gauge wire between the BDL168, BDL16 & BDL162 and remotely located track sections.

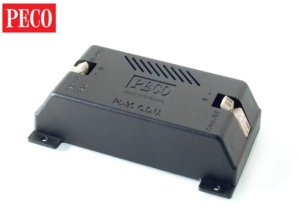

Peco PL-35 Capacitor Discharge Unit
PECO PECOLECTRICS
CAPACITOR DISCHARGE UNIT
For use with all solenoid motors (e.g. PL-10 and Pl-11). Connect this unit to the 16v ac supply on your transformer. The capacitor stores up power and discharges a -kick- to ensure turnout blades snap over every time.
PL-10 Turnout Motors
PL-11 Surface Mounted Turnout Motors
PL-38 Wire
HO Signal - Searchlight (Single Head-No Cabinet) - SP/SF
BH1 Tsunami 2 Sound Decoder - ALCO Diesel
Dimensions: 97 x 16 x 7.7mm
Max. Motor Stall Current: 2A
Max. Function Current: 100mA (each output)
Function Outputs: 8 LED-Friendly Outputs!
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 16
Get an easy upgrade for your Bachmann Sound Value diesel models with our newest Tsunami2 decoder! The TSU-BH1 offers 8 LED-friendly function outputs so resistors are not required for LEDs! (See the wiring diagrams under product documentation for more information). Light effects are fully remappable and offer full access to our 20+ HyperLight effects.
This decoder is available in 3 sound profiles EMD, GE, and ALCO. For an easy install, simply replace the Sound Value decoder and enjoy all of the Tsunami2 features you love!
This decoder is designed to replace the factory board in the following Bachmann Sound Value Diesel Models: FA-2, FB-2, S-4, E7-A, SD70ACe, ES44AC, GP30, GP38-2, GP40, GP7, and SD40-2.
Fun Tsunami2 features including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and more. We also offer a large selection of selectable sound effects including: prime movers (up to 12), bells (12), airhorns (40+), couplers, and more!
This decoder includes a connector to easily add a CurrentKeeper (P.N. 810140 or 810160) to maintain performance over dirty track and switches.
Layout Control System - Single Color LED Fascia Indicator - White
Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts! The system is expandable at any time to grow with your layout, and can be used with DCC- or DC-power (a DCC accessory decoder is integrated into the switch machine). The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include a servo-based slow-motion Switch Machine, Power Distribution Block, LED panel indicator/control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.
Signal Extension Cable - All Scales Signal System Short - 12inch 30.5cm
Universal Signal Control Board - All Scales Signal System
The Atlas Universal Signal Control Board is the heart of the All-Scales Signal System circuitry. This plug-and-play system supports both common-anode or common-cathode signals giving you the capability of modeling a variety of different prototypical scenarios.
- Stand Alone Operation - in this case a single signal runs independently of other signals, and displays appropriate aspects, such as red - yellow - green, in a timed manner.
- Integrated ABS Block Signaling - Connecting a number of Signal Control Boards together in a daisy chain fashion enables you to represent a prototypical block signal system, where the occupancy of the blocks ahead and behind your train determines the aspects displayed by the signals. The number of blocks is controlled by a simple jumper setting on each signal control board.
- Approach-Only Signaling - To better support prototypes whose signals do not illuminate until a train is nearby, the Signal Control Board has a setting to enable this behavior.
- Flashing Aspects - On some railroads, in order to increase the number of indications available to train crews, such as intermediate restrictions, certain flashing aspects are used. These aspects are now supported with flashing yellow and green options, and are automatically enabled for certain prototypes by a single jumper setting.
- Complex and Interlocking Signaling - In combination with our new Interlock Control Module, simple turnout indication or complex route-based signaling is possible.
- Manual Control - Full control of signal aspect for Red, Yellow, Flashing Yellow, Flashing Green (with appropriate auto return to Green) is available for those wishing to create the ultimate in CTC-like systems.
HO Signal - Hooded Modern (Double Head-Right)
SDN144K0a w/Sound
Features:
Board replacement Mobile Sound/Motor/Function Decoder with SoundFX
Board replacement decoder for N Scale Kato P42, E8, PA1, F40 and similar locos
Dual E8/F40 diesel sound scheme pre-loaded compatible with Sound Project downloads!
Includes 13mm 8 Ohm round speaker & 330uF capacitor.
Current Rating 1.0 Amp (1.3 Amps Peak)
Size 2.15inch x 0.55inch x 0.14inch
55.5mm x 13.8mm x 3.6mm
Installation Board replacement
Function Outputs 4-200mA
Function Type FX3
Tsunami 2 TSU-pnem Digital Sound Decoder for Baldwin & Other Diesels Sounds
Prime Movers - Rio Grande Southern Galloping Goose, Dual Whitcomb, Fairbanks-Morse, GE GTEL UP Slab Side, GE GTEL UP Veranda, GE GTEL UP Big Blow - A unit, GE GTEL UP Big Blow - B unit, Cummins QSK19C x3 GenSet
9 Pin board
The TSU-PNEM is a 9 Pin sound decoder suitable for use in many manufacturers models such as those made by Atlas Athearn and InterMountain Models. It is suitable for a wide variety of models from HO to S scale.
9 EMD Prime Movers
Dimensions: 30.5 x 15.5 x 6.5mm
Max. Motor Stall Current: 2A
Function Outputs: 6
Max. Function Current: 100mA (each output)
Audio Amplifier: 2 Watts, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
16-bit Digital Sound
1A Motor Stall Current
Over 50 Sound Effects with Selectable Reverb
Functioning Engine, Train and Dynamic Brakes
Reactive Dynamic Digital Exhaust
6 Function Outputs with over 20 Hyperlight Effects
Hyperdrive2 Advanced Motor Control
DCC Track Voltage 7.5V – 22V
No speaker included
PX108-6F HO Power Xtender
BH1 Tsunami 2 Sound Decoder - EMD Diesel
Dimensions: 97 x 16 x 7.7mm
Max. Motor Stall Current: 2A
Max. Function Current: 100mA (each output)
Function Outputs: 8 LED-Friendly Outputs!
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 16
Get an easy upgrade for your Bachmann Sound Value diesel models with our newest Tsunami2 decoder! The TSU-BH1 offers 8 LED-friendly function outputs so resistors are not required for LEDs! (See the wiring diagrams under product documentation for more information). Light effects are fully remappable and offer full access to our 20+ HyperLight effects.
This decoder is available in 3 sound profiles EMD, GE, and ALCO. For an easy install, simply replace the Sound Value decoder and enjoy all of the Tsunami2 features you love!
This decoder is designed to replace the factory board in the following Bachmann Sound Value Diesel Models: FA-2, FB-2, S-4, E7-A, SD70ACe, ES44AC, GP30, GP38-2, GP40, GP7, and SD40-2.
Fun Tsunami2 features including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and more. We also offer a large selection of selectable sound effects including: prime movers (up to 12), bells (12), airhorns (40+), couplers, and more!
This decoder includes a connector to easily add a CurrentKeeper (P.N. 810140 or 810160) to maintain performance over dirty track and switches.
Power Pro Cab06r
Wireless intermediate cab with LED display, encoder speed and internal antenna.
Signal Extension Cable - All Scales Signal System Long - 72inch 183cm
Auxiliary Input Unit (For Block Detection)
The Auxiliary Input Unit (AIU) provides a means of connecting external devices such as switch contacts, Block Detectors (BD20), or other sensors to the NCE Cab Bus or Command Station. These external devices can be anything that supplies an electrical connection between the input pins (1-14) and the pins marked GND Connects to the NCE cab bus using RJ12 6 wire jack.
Dual Color LED Accessory Fascia Controller
plus one cable of 942-113 - Plug - Socket extension cable - 48 inches Long
Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts! The system is expandable at any time to grow with your layout, and can be used with DCC- or DC-power (a DCC accessory decoder is integrated into the switch machine). The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include a servo-based slow-motion Switch Machine, Power Distribution Block, LED panel indicator/control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.
See the entire system!
The Walthers Layout Control System Dual Color LED Accessory Controller features:
Compact footprint for space-saving installation
Green/yellow LED indicator - adjustable display to match Switch Machine settings
Single pushbutton operation
Complete instructions with mounting template - use with Control System Turnout Drill Set (#942-140, sold separately)
Fits 1/8 inch or 1/4 inch (0.3 or 0.6cm) thick panels
Connecting cable included - easily expanded with Extension Cable (#942-113, sold separately)
DCC 4 Block Occupancy Detector
-Low-cost, High-sensitivity DCC block-occupancy detection.
-Adjustable resistance/current detection section (DS) trip threshold.
-8A capacity, suitable for all scales and track wiring configurations.
-Noise resistant and compatible with BDL168 sections.
-On-board status LEDs for stand-alone occupancy and track power indication, expandable for optional LT5 or fascia mounted occupancy indicator LEDs.
-Plug and Play connections to simplify setup. Can cascade Booster wires.
-Isolated Occupancy output signal lines can drive most common signal system or control interfaces.
-Compatible with DS64 and SE8 modules for signaling, control and reporting occupancy onto LocoNet.
-Replaces the BD4.
DN163K2
Designed to fit the Kato N scale SD80/90MAC Series, RSC2, RS2.
Golden-White LEDs for added realism
Decoder Lock equipped
Current Rating 1.00 Amp (1.5 Amps Peak)
Size 0.354†x 3.18†x .128â€
9.0mm x 80.78mm x 3.26mm
Installation Board replacement decoder
Function Outputs 6-500mA
Function Type FX3
Features Series 3
LokSound 5 Nano DCC -Blank decoder
With the LokSound 5 Nano DCC, ESU has succeeded in developing an even smaller LokSound decoder: With only 19.6 mm x 8.5 mm x 3.2 mm, it is the smallest LokSound decoder we have ever built. Thus, it should really be used in all vehicles of nominal sizes N and TT.
The LokSound 5 Nano DCC decoder is a pure DCC decoder with open
cable ends for free wiring. The LokSound 5 Nano DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Please note the LokSound 5 Nano DCC decoder does not come with a speaker.
Modes
The LokSound 5 Nano is a pure-bred DCC decoder. 14 to 128 driving steps are as self-evident as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus, the decoders register fully automatically at a suitable digital center. It masters all DCC programming modes and thanks to RailCom the CV values can be read out on the main track with suitable control panels. Auxiliary registers exist for control panels that can only program the CVs from 1-255.
The LokSound 5 Nano Decoder detects the Marklin brake distances as well as ZIMO HLU / ZACK commands or the Lenz ABC system. Braking with DCC brake blocks or with equal voltage is also possible. In addition, it also stops with a Selectrix brake diode. An automatic ABC pen train allows automatic commuting between two stations.
The LokSound 5 Nano can be used on analog DC webs.
The decoder switches on-the-fly fully automatically between operating modes. Most of the time, nothing needs to be adjusted.
Sound
The LokSound 5 Nano Decoder can play up to 12 channels simultaneously. Each channel can be resolved with up to 16 bits / 31250 kHz and offers hi-fi quality on your system. There is virtually no difference to the original audible anymore. A Class-D audio output with up to 3W output power controls the speakers, which may have between 4 ohms and 32 ohms impedance. A 128 Mbit sound memory provides enough capacity. All individual noises can be adjusted individually in the volume. The super-flexible sound engine without a rigid schedule allows the exemplary simulation of all conceivable rail tracks.
Functions
Despite its small size, the LokSound 5 Nano has 6 reinforced function outputs as well as a logic level output as a solder pad. All important lighting functions are available. The brightness of each output can be set separately. The decoder controls the automatic start-up and disconnection when uncoupling for ROCO, Krois and Marklin telex couplings.
HO Signal Hooded Modern (Single Head-Left)
ESU 53452 LokProgrammer - With Power Supply, Serial Cable, USB Adapter, Manual & CD
Enjoy your LokSound equipped engines even more by adding or changing sounds and fine-tuning performance using this unit with your home computer. Easy to use with no prior knowledge of programming needed, the unit can be used with any PC with an audio card and a Windows operating system. Just connect the programmer to your PC using the serial port or the USB adapter (included). Start the software then place a loco with a LokSound decoder on your programming track. The software automatically detects which type of decoder is installed and provides specific information; easy to follow on-screen graphics let you change loco address, speed steps, acceleration and deceleration, load control, speed curve and analog functions, assign function buttons for lighting effects and brightness, and all special settings. Plus, you can change or completely replace the current sounds with additional selections included on the software. You can also use your own recordings or choose from a wide range of downloads available on the Loksound Web-site. Unit is complete with power supply, serial cable, USB adapter, manual and CD.
DN166PI0 - 1.5 Amp - N Scale Decoder for Intermountain SD40T-2/SD45T-2
Fits Intermountain N scale SD40T-2 / SD45T-2
6 FX3 Functions
3.5in x .367in x .135in w/ LED
88.9mm x 9.32mm x 3.42 mm
Replaces DN163I0
FX3 Function outputs for prototypical lighting effects and on/off control:
Constant Brightness Lighting with directional or independent control.
Realistic Effects like Ditch lights, Mars lights, strobes, and many more
Configurable Pulse Function available on all function outputs.
Optimized selectable LED or incandescent lamp operation.
FX3 & Standard Function Qualifiers operate functions based on direction,
F0 on or off, direction and F0, and whether loco is moving.
Configurable FX3 Pulse Function available on all function outputs.
Function Remapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls
Digitrax LocoMotion System-Your locomotives look like the real thing.
The Digitrax LocoMotion System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
Simple 3 Step Speed Tables for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
Scaleable Speed Stabilization (Back EMF)
Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment.
Digitrax Easy Connect 9 Pin Harness
Series 6 Decoder Features.
2 Digit and 4 Digit Addressing.
Basic, Advanced & UniVersal Consisting.
SuperSonic motor drive for silent operation.
Direct mode programming.
Decoder Reset CV with or without speed table reset.
Transponder Equipped ready for transponding on your Layout.
Automatic Analog Mode Conversion when running on DC layout.
Motor Isolation Protection helps prevent damage to your decoder.
Decoder Lock for individual programming of multiple decoders in one loco.
DCC Compatible.
FCC Part 15, Class B RFI compliant.
Digitrax No Worries Warranty.
ESU 53900 Decoder Tester - New Version - for makes and models of any manufactures decoders
In order to make things as easy as possible for you, the Profi Decoder Tester is equipped with some useful features. It has all commonly used interface sockets for connecting a decoder for the smaller scale models:
Besides a 6-pole NEM 651 socket and the 8-pole NEM 652 socket, it also has an 21MTC interface as per NEM 660, a PluX22 socket as well as a Next18 interface: No matter which type of decoder you have: Simply plug it in – it will fit! And that’s all there is to it!
Decoders without any interface can be contacted with individual terminals.
A quality coreless motor with flywheel serves in conjunction with LEDs indicating the direction for checking the motor output: Thus it is quite easy to check on the low speed performance and the even speed of the decoder. An LED monitor informs you about the functioning of the headlights and back-up lights as well as the function outputs AUX1 through AUX6.
For testing LokSound decoders we have integrated a 20 mm speaker. You may choose if the integral speaker should be switched off or if it should have 100 Ohm respectively 16 Ohm – thus the Decoder Tester is perfectly suitable for any ESU decoder generation and other decoder manufactorys.
Two SUSI plugs facilitate the direct test of optional SUSI modules as well as the connection to another circuit board.
The electrical connection to either the command station or the LokProgrammer is facilitated by a removable, 2-pole terminal block (same system as used on the LokProgrammer and the ECoS) or via two solder points.
Mobile Control II - Throttle, Lanyard, USB-Cable
Product Features and Details
Mobile Control II wireless hand controllers set for ECoS, DE / EN. With wrist strap, USB charging cable
Since smartphones have the classic mobile phone virtually completely displaced with touch controls to model railroaders and train manufacturers Model ask how to use these powerful devices for controlling a model railroad layout. As a result of these issues emerged lately many apps that you can download on his mobile phone and control for model railway use. This approach certainly has the disadvantage that a smartphone was not primarily designed for model railroad operation and is always drawn due to lack of input elements of the views of model railroaders on display. By the time goes on strike due to intensive Bahnbetriebs the phone battery and one is no longer accessible, the limits are quickly apparent. We at ESU us therefore raised the question of how to combine the advantages of smart phone technology with the needs of model railroaders. With great pleasure we introduce the result of our considerations you today. The Mobile Control II you can control locos, stationary decoders and routes via state radio!
Open platform
The all-new Mobile Control II is based on Android. For this open, distributed worldwide operating system a powerful base was created: The clocked with 1.3 GHz ARM A8 Cortex microprocessor can access 1 GB of RAM and controls a high-resolution TFT color display with 3.2 inch size. For storing apps and data are available 4 GB of flash memory available. A capacitive touch screen ensures the contactless entry of all data. To communicate with the outside world in addition to a USB port provides a wireless radio interface. Thanks to the standardized radio interface can always be assured your layout trouble-free operation. With the help of wireless repeaters can be easily extended if necessary radio range. The permanently installed, high-performance lithium polymer battery lets loose even on the longest days of operation. Connect to load your Mobile Control II easy with the USB charger of your mobile phone or any other USB port. Because of the open platform, you can always expand with the help of additional apps from the Google Play Store the functions.
Combines ergonomics and function
If you II hold the Mobile Control for the first time in his hands, you will immediately notice its outstanding ergonomics: all controls can be reached with one hand immediately, the most important functions even -blind-: Her eyes remain focused on your plant and your moves. Made possible by the central, motorized knobs with end stop. With its help, you can sensitively control the speed of the locomotive and change the driving direction. For switching functions directly touching the icons displayed on the screen. The screen is also used for easy change of functions - exactly like you know it from your phone already. Two buttons on the left and right side of the device eventually serve for switching the driving direction or to trigger the most important functions.
Interaction
The Mobile Control II is perfect for working with the ECoS command stations tuned: The ECoS synchronizes all data with the wireless handheld controller, so you need to enter any data locally. For magnetic and routes also the names, addresses and correct symbols are displayed naturally.
Control locomotives
The Mobile Control II can control all created in the ECoS locomotives and understands course 14, 28 or 128 speed steps. All significant Lokeigenschaften as the name, a locomotive symbol, Function Keys and Function Keys symbols are taken over by the ECoS and displayed correctly. In this case up to 28 function keys can be connected per locomotive, which can of course be individually configured as static as well as moment features.
Switch accessories
All arranged on the interlocking of ECoS accessory and driveways can be switched. Of course, the distinction remains in two- three and four magnetic accessories received and it is also the correct symbol appears on the display.
More fun at play
The high-resolution (480 x 800 pixels, 280 dpi), backlit TFT display of the Mobile Control II you always informed about the most important operating parameters. In addition you can see if a loco was assigned by another player or if an emergency stop on the plant.
Clever connection
The Mobile Control II uses the wireless standard for communication with the ECoS. You must therefore connect the panel to a WLAN. If you already own a wireless router (eg AVM FritzBox, you can connect to this ECoS easily. The ECoS and the Mobile Control II will be found automatically. Do you want your model railway not connect to your home network and you want to remain flexible for exhibitions, this is also not a problem: Upon request we provide for the Mobile Control II a mini access point with which easily using the ECoS in a few steps set up is. If your model railroad grows, you can connect up to 16 Mobile Control II with your ECoS. In this way, for example, every club member is able to control its intended locomotive
ESU 54671 PowerPack Mini
for LokPilot V4.0, LokSound V4.0 family, LokSound Select Family, LokSound 5 family 1F/2.7V
The new ESU PowerPack Mini can be wired to all fourth and fifth generation ESU decoders. It reliably supplies energy to your locomotive when traversing dirty track or long turnout ladders.
With its energy storage (1 Farad capacity) the unit supplies power to all light and motor functions as well as to the sound module. Subject to the energy consumption of your model it may continue to move for up to three seconds.
The PowerPack Mini incorporates an integral charging circuit controlled by the decoder. Therefore it may be connected even during programming. In order to avoid an undue load on the booster in case there are several models in the same booster sector, the charging current is limited.
The buffer time can be reduced by means of a CV. This may be useful to assure the correct stopping position ahead of signals showing the Stop aspect (red signal).
Although it is considerably smaller than its predecessor, the space requirements of the PowerPack Mini of about 15.7 mm x 9.7 mm x 13 mm must be taken into account when installing this unit.
A three-pole wire harness connects the PowerPack Mini to the decoder. The wires are already soldered to the PowerPack Mini and must be soldered to the appropriate solder pads of the decoder.
ESU Super thin cable,0.02inch 0.5mm dia. AWG36 multi-stran 30FT 10m All DCC colours available. Yellow
Tsunami2 Digital Sound Decoder - 21-Pin NEM form factor - EMD Diesel Locomotives
Dimensions: 30.5 x 15.5 x 6.5mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 8
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 16
The NEW TSU-21PNEM8 is a 1-amp Digital Sound Decoder with 8 function outputs. It is designed for easy plug-in operation when mated to a 21-pin NEM connector. You will feel like you are in the cab with the amazing new features that Tsunami2 has to offer including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and firebox flicker. We also offer a large selection of selectable sound effects including: exhaust chuffs(10), prime movers (up to 12), bells (12), Whistles (90), airhorns (40+), couplers, dynamos and more!
The TSU-21PNEM8 can be wired to a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.
SoundTraxx - Ultra Flexible Hookup Wire, 10ft 30AWG, Violet
Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze.
Layout Control System - Two Color LED Fascia Indicator (Red, Green)
Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts! The system is expandable at any time to grow with your layout, and can be used with DCC- or DC-power (a DCC accessory decoder is integrated into the switch machine). The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include a servo-based slow-motion Switch Machine, Power Distribution Block, LED panel indicator/control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.
These decoders are built to eliminate annoying motor hum and buzz at slow speeds.
This HO sized decoder is designed to fit Locomotives with a 8 pin socket such as:
Kato RS2/RSC2 and C44-9, SD40-2, SD45, Stewart VO-1000, Intermountain F7, Atlas U23B and U30B,U33C, U36C, C30-7, U23B, GP40,AEM-7, GP7, Bachmann Spectrum Steam, locomotives, LifeLike FA1, ER Models Sharknose, Fp7, in HO Scale. The easiest installation possible, just plug it in! 1.3 Amp rating (2 Amp peak). Six function outputs and Silent RunningTM too! Size: 0.80inch x 0.65inch x 0.110inch.
Decoder Buddy Mini
Makes Your HO Scale 21-Pin Decoder Installations Easy!
The Decoder Buddy Mini was developed to fit into smaller steam and diesel applications. there has also been interest in HOn3 and S-Gauge applications.
- This mother board does not include the 21 Pin Decoder.
- This mother board requires soldering.
- These printed circuit board is NOT INTENDED FOR USE IN A DC SYSTEM.
The mother board includes:
- One 21 Pin Decoder receptacle
- Two pairs of track input pads
- One pair of motor input pads
- One set of stay alive pads (U+ , GND and if necessary a third control wire )
- One pair of speaker pads
This motherboard is equipped with resistors for use with LED lighting. (separate axial 2.2K) (Also available with 0 ohm, 750 ohm and custom specified resistors for function outputs. This accommodates incandescent lamps or bulbs.) It is IMPORTANT to realize that resistors must be used when LEDs are connected to the four lighting outputs of the Mini!!! The resistors may be soldered in line when purchased or the included resistors may be soldered inline upon installation. Remember there are different incandescent lamp voltages and current draw that also have to be taken into consideration.
DNDP Dummy Plugs for Digitrax N Scale Harness (5 pack)
Lets you run locos as DC or DCC
For DC only operation use the dummy plug with either DNWH or DNWHPS
For DCC operation remove the DNDP and replace with a decoder
5-Pack
Tsunami2 Digital Sound Decoder - 21-Pin NEM form factor - Steam Locomotives (Collection 2)
Dimensions: 30.5 x 15.5 x 6.5mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 8
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 16
The NEW TSU-21PNEM8 is a 1-amp Digital Sound Decoder with 8 function outputs. It is designed for easy plug-in operation when mated to a 21-pin NEM connector. You will feel like you are in the cab with the amazing new features that Tsunami2 has to offer including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and firebox flicker. We also offer a large selection of selectable sound effects including: exhaust chuffs(10), prime movers (up to 12), bells (12), Whistles (90), airhorns (40+), couplers, dynamos and more!
The TSU-21PNEM8 can be wired to a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.
N12SR
Version 3.3 Measures: 11/32 x 11/16 x 1/8inch (8.6 x .18 x 3.2cm)
1 Amp (1.25 Amp peak) rating and two function outputs
NCE Plug-N-Play Decoder w/White LEDs - N12A0e N Scale
For Atlas GP40-2, U25B, B23-7, 30-7, 36-7, GP38, SD25, Train Master
This is an EPF (extended packet format) decoder supporting:
Silent Running TM motor drive
Torque Compensation for ultra smooth low speed performance
Programmable Start, Mid and Maximum speed works for all speed modes
Motor rating 1 Amp continuous, 1.25 Amp peak (stall)
both function outputs have lighting effects generators
Select from 15 different lighting effects (Mars, strobes, beacon, flicker, etc)
Lighting outputs can be mapped to different functions
Uploadable speed table interpolated to 128 speed steps
Decoder assisted consisting
Support for all forms of DCC programming
Decoder programming lock mechanism
Brake on DC feature assists automatic train control
DN123K3 N Scale Plug-N-Play Decoder For Kato NW2
This 6 function decoder is rated at 1.5A - 2A peak - and has 6 FX3 functions at .5A.
Supports Digitrax FX3 functions and 14, 28 or 128 step speed control.
Other features include -
Torque compensation for smooth, silent operation.
Momentum with acceleration and deceleration.
User selectable normal direction of travel.
Switching speed feature for easier and faster access to yard speeds.
Three-step speed tables set start, mid and max voltage for custom control.
28-step speed tables with 256 level resolution for precise control.
SuperSonic - motor drive for silent operation.
FX3 function outputs for prototypical lighting effects -
Constant brightness lighting with directional or independent control
Realistic effects such as ditch lights, Mars lights, strobes, and more.
Dynamic and static qualifiers operate functions based on direction, F0 on or off, loco direction and F0, and whether loco is moving.
Function remapping for custom setup.
Master light switch turns off all lights and functions with one keystroke.
Advanced consist function controls
Transponder equipped
All-mode programming with operations mode read back - reads back CV values on the mainline
Decoder reset CV with or without speed table reset.
Motor isolation protection prevents decoder damage.
Basic, advanced and universal consisting
Two- or four digit addressing
DCC compatible
Works with most DCC-ready Z, N, and HO Scale locomotives up to 18V track voltage
FCC Part 15, Class B RFI compliant
Decoder lock
Soundtraxx - TSU8F -PNP EMD Diesel, 8Function Tsunami 2 Sound Decoder - Plug and Play Form Factor
The TSU-PNP8 is a universal factory board replacement sound decoder suitable for use in many manufacturers diesel models such as those made by Atlas, Athearn, Bowser, Kato and InterMountain Models. It is suitable for a wide variety of models from HO to S scale. The TSU2-PNP8 includes a connector to easily add a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches. There are two additional function outputs added to the existing TSU2-PNP design using the same lighting circuit and processor pins added for FX7 and FX8. Lighting outputs are compatible with 12-14V bulbs, 1.5V bulbs or LEDs with external resistors.
Features:
Tsunami2 diesel sound decoders are full of new features including over 50 sound effects including engine startup and shutdown, engine prime mover through all eight notches, Straight-to-8, HEP mode, 13 bells, over 40 airhorns, 4 air compressors, dynamic brakes, radiator fans, brake squeal, and more!
Each diesel version (EMD, GE, etc.) contains up to 9 manufacturer specific prime movers (Turbo, Non-turbo, etc.)
First ever Diesel Dynamic Digital Exhaust (DDE) for a more authentic operating experience
Startup, shutdown and exhaust through 8 notches
Automatic or manual notching
Functioning dynamic brake with variable load sound and adjustable braking rate
Over 40 air horns
Selectable compressors, bells, and couplers
First ever Fireman Ed is ready to work on the locomotive, with general service, cab sounds and more!
Clickety-clack, fueling, and authentic cab chatter add realism
Prototypically correct HEP modes and steam heat for authentic passenger train operations
Tsunami2 Overview:
The Tsunami2 is an all-new premium flagship decoder from SoundTraxx, packed with many new features and sound effects to help enhance the realism and fun with both sound and operation. Tsunami2 leads the industry in processing power with a 32-bit processor that provides the necessary horsepower to support 28 functions, 16 polyphonic sound channels, tons of sound and lighting effects, and advanced motor control.
Tsunami2 Digital Sound Decoders integrate a full-featured sound system, Hyperlight lighting effects, Hyperdrive2 advanced motor control, and a DCC decoder into a single package. Tsunami2 Digital Sound Decoders offer over 50 individual sounds, and over 20 lighting effects in each model!
We have added a host of new recordings including: whistles, horns, bells, compressors – and remastered favorites from years past. These new recordings provide nearly limitless choices for your customer! Multiple prototypes in every model means no time spent on a computer downloading files or purchasing special programs. In addition, more powerful audio output, two volume mixers, and our ever-popular Equalizer make the digitized recordings of real engines loud, clear and ultra-flexible.
Tsunami2 Digital Sound Decoder - 21-Pin NEM form factor - Assorted Locomotives
Will work for a variety of locomotives.
Dimensions: 30.5 x 15.5 x 6.5mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 8
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 16
The NEW TSU-21PNEM8 is a 1-amp Digital Sound Decoder with 8 function outputs. It is designed for easy plug-in operation when mated to a 21-pin NEM connector. You will feel like you are in the cab with the amazing new features that Tsunami2 has to offer including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and firebox flicker. We also offer a large selection of selectable sound effects including: exhaust chuffs(10), prime movers (up to 12), bells (12), Whistles (90), airhorns (40+), couplers, dynamos and more!
The TSU-21PNEM8 can be wired to a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.
ProtoThrottle Receiver for NCE Cab Bus and Lenz XpressNet
This receiver connects the ProtoThrottle to an NCE command station or Power Cab, (Note: The ProtoThrottle does not work with the NCE Power Cab v1.1. An upgrade chip can be purchased from NCE) using the Cab Bus protocol or to a Lenz command station using the XpressNet protocol. It receives the wireless signal(s) from multiple ProtoThrottles and communicates them directly to the command station over the Cab Bus. The NCE fast clock time can also be sent to the ProtoThrottle for display on its LCD screen.
Specifications:
3.5(L) x 2.3(W) inches
SNAP-IT - For Single Twin Coil Type Machine
Control one twin coil switch machine. Has capacitive discharge for low current draw of track power. Provides connections for two -local control- pushbuttons. You can control switches from your cabs and your control panels.
DH166P 1.5 Amp Premium HO Scale Wired Mobile Decoder
.672 x 1.074 x .259inch
17.08mm x 27.28mm x 6.6mm
Digitrax Easy Connect 9 Pin Harness
DCC Medium Plug 3.0inch harness ( 8 pin )
1.5 Amp/2 Amp Peak Current Rating
6 FX3 Functions, 0.5 Amp Total Function Current Rating
FX3 Function outputs for prototypical lighting effects and on/off control:
Constant Brightness Lighting with directional or independent control.
Realistic Effects like Ditch lights, Mars lights, strobes, and many more
FX3 & Standard Function Qualifiers operate functions based on direction,
F0 on or off, direction and F0, and whether loco is moving.
FX3 effects optimized for selectable LED or lamp operation
Configurable FX3 Pulse Function available on all function outputs.
Function Remapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls
Digitrax LocoMotion System-Your locomotives look like the real thing.
The Digitrax LocoMotion System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment.
Series 6 Decoder Features.
2 Digit and 4 Digit Addressing.
Basic, Advanced & UniVersal Consisting.
SuperSonic motor drive for silent operation.
Scaleable Speed Stabilization ( Back EMF) for smooth speed control.
Direct mode programming.
Decoder Reset CV with or without speed table reset.
Transponder Equipped ready for transponding on your Layout.
Motor Isolation Protection helps prevent damage to your decoder.
DCC Compatible.
FCC Part 15, Class B RFI compliant.
Digitrax No Worries Warranty.
Specifications
Current Rating-Motor1.5/2.0 Ampx MaxSize .672 x 1.074 x .259inch (17.08mm x 27.28mm x 6.6mm)Installation Digitrax 9 pin to DCC medium plug 3.0inch hardness ( 8 pin)
Function TypeFX3 (read more)
FeaturesSeries 6
Current Rating-Functions0.5 Amps total all functions Original Release Date02-04-2014 Warranty - No Worries Warranty
DCC Adapter Board (1)
HO Scale 2-Track Modern Cantilever Signal Bridge - All Scales Signal System 4 Signal Heads, Right-Hand Fully Assembled
Soundtraxx - TSU8F -PNP EMD-2, 8Function Tsunami 2 Sound Decoder - Plug and Play Form Factor
The TSU-PNP8 is a universal factory board replacement sound decoder suitable for use in many manufacturers diesel models such as those made by Atlas, Athearn, Bowser, Kato and InterMountain Models. It is suitable for a wide variety of models from HO to S scale. The TSU2-PNP8 includes a connector to easily add a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches. There are two additional function outputs added to the existing TSU2-PNP design using the same lighting circuit and processor pins added for FX7 and FX8. Lighting outputs are compatible with 12-14V bulbs, 1.5V bulbs or LEDs with external resistors.
Features:
Tsunami2 diesel sound decoders are full of new features including over 50 sound effects including engine startup and shutdown, engine prime mover through all eight notches, Straight-to-8, HEP mode, 13 bells, over 40 airhorns, 4 air compressors, dynamic brakes, radiator fans, brake squeal, and more!
Each diesel version (EMD, GE, etc.) contains up to 9 manufacturer specific prime movers (Turbo, Non-turbo, etc.)
First ever Diesel Dynamic Digital Exhaust (DDE) for a more authentic operating experience
Startup, shutdown and exhaust through 8 notches
Automatic or manual notching
Functioning dynamic brake with variable load sound and adjustable braking rate
Over 40 air horns
Selectable compressors, bells, and couplers
First ever Fireman Ed is ready to work on the locomotive, with general service, cab sounds and more!
Clickety-clack, fueling, and authentic cab chatter add realism
Prototypically correct HEP modes and steam heat for authentic passenger train operations
Tsunami2 Overview:
The Tsunami2 is an all-new premium flagship decoder from SoundTraxx, packed with many new features and sound effects to help enhance the realism and fun with both sound and operation. Tsunami2 leads the industry in processing power with a 32-bit processor that provides the necessary horsepower to support 28 functions, 16 polyphonic sound channels, tons of sound and lighting effects, and advanced motor control.
Tsunami2 Digital Sound Decoders integrate a full-featured sound system, Hyperlight lighting effects, Hyperdrive2 advanced motor control, and a DCC decoder into a single package. Tsunami2 Digital Sound Decoders offer over 50 individual sounds, and over 20 lighting effects in each model!
We have added a host of new recordings including: whistles, horns, bells, compressors – and remastered favorites from years past. These new recordings provide nearly limitless choices for your customer! Multiple prototypes in every model means no time spent on a computer downloading files or purchasing special programs. In addition, more powerful audio output, two volume mixers, and our ever-popular Equalizer make the digitized recordings of real engines loud, clear and ultra-flexible.
ESU Super thin cable,0.02inch 0.5mm dia. AWG36 multi-stran 30FT 10m All DCC colours available. Red
Power Pack Energy Storage For Lok-Sound
The new ESU PowerPack Maxi has been developed as the powerful complement to the LokSound L V4.0 decoder. It can, of course, provided there is sufficient space, also be connected to all LokPilot V4.0, LokSound V4.0 or LokSound V4.0 M4 decoders. It provides uninterrupted power to your locomotive when traversing dirty track and long turnout ladders. All sound, lighting and motor functions are buffered with the aid of two energy storage capacitors enabling your models – subject to the total energy consumption - to continue running for up to three seconds.
The PowerPack Maxi incorporates an integral charging circuit controlled by the decoder. Therefore it may be connected even during programming. The charging current is limited in order to avoid an undue load on the booster, in case there are several models in the same booster sector.
The buffer time can be reduced by means of a CV. This may be useful to assure the correct stopping position ahead of signals showing the Stop aspect (red signal).
The space requirements of the PowerPack Maxi of about 27.5 mm x 15.7 mm x 13 mm must be taken into account when installing this unit.
A three-pole wire harness connects the PowerPack Maxi to the decoder. The wires are already soldered to the PowerPack Maxi but must be soldered to the appropriate solder pads of the decoder.
Please note that due to technical reasons the PowerPack cannot operate in analogue mode: Buffering is therefore not possible in analogue mode.
PSXX3 - Circuit Breaker - 3 Block, 0-10 Amps
The All-New, Upgraded, DCC Specialties PSXX Circuit Breakers Are Here!
The PSXX is designed to specifically handle low power starter systems:
- NCE Power Cab
- Digitrax Zephyr
The PSXX has a default trip rate of 2.0 amps.
The PSXX series has the most reliable operating features that protect model railroad equipment and wiring from damage during a short circuit, including fast-acting, solid-state electronics.
The Power Shields are available in 1, 2, and 3 circuit-breaker models, allowing you to divide the output of a single booster into independent power districts.
The PSXX circuit board is wired between the DCC systems booster and the track bus.
The PSXX includes screw terminals for easy connections from the booster and to the track. There is also an extra pair of terminals for linking the booster power input wires to additional PSXX breakers should you need to add extra PSX protected power districts.
N14A3 Decoder - Board Replacement DCC Decoder
Direct plug in to Atlas GP39-2, Intermountain SD40-2 plus other plug-and-play N Scale locos
Dimensions: 2.6 x 0.350 x .079 inches (66 x 8.9 x 2.0 mm)
Features of this decoder:
- Silent Running torque compensated motor drive
- Torque Compensation for ultra smooth low speed performance
- Motor rating 3/4 Amp continuous, 0.75 Amp stall
- All four function outputs have lighting effects generators
- Select from 15 different lighting effects
- Full support for LED lighting
- Decoder programming lock mechanism
Tester for Decoders & LocoNet Cables
The LT1 consists of a harness with 6 conductor Telco type wire and a male plug, a tester with a female 6 conductor jack and a protection resistor.
LocoNet Occupancy Detector - 8 Detection Sections with Transponding and Power Management
BXP88 makes adding detection and transponding to your layout easier than ever. No more complicated wiring!
- DCC Occupancy Detection supports up to 8 Detection Sections letting you know when equipped rolling stock is in a detection section on your layout.
- One Transponding Zone per Detection Section lets you know the location of transponder-equipped locos or rolling stock.
- Intelligent Automatic short-circuit and over-current power management for each Detection Section, improves reliability by avoiding most booster fault shutdowns.
- Connects to LocoNet to transmit Detection Section occupancy, Transponding and track power information.
- Detects any powered locomotives in a Detection Section.
- Identify where specific rolling stock is on your layout with Digitrax transponder-equipped locos and rolling stock.
- Detects rolling stock equipped with resistor wheel sets.
- Plug and Play with Digitrax DCC systems with automatic Railsync polarity detection.
- LED output headers for front panel indication of Detection Section occupancy, Transponding, and power status.
- Easy-connect pluggable track wire terminal blocks can plug-in straight or at right angles.
- 3 Amp capacity per Detection Section, 8 Amp total unit capacity.
- Automatically updates status at track power on.
- Operations Mode Read Back allows you to read CV values of decoders equipped with transponders when on track.
- Firmware update capability via IPL over LocoNet.
BH2 Tsunami2 Digital Sound Decoder - 2 Amp, Steam Locomotives (Collection 2))
Dimensions: 45 x 28 x 7.5mm
Max. Motor Stall Current: 2A
Max. Function Current: 100mA (each output)
Function Outputs: 8LED-Friendly Outputs!
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 16
Get a quick decoder upgrade for your Bachmann HO Sound Value steam models with our new Tsunami2 TSU-BH2. This decoder offers 8 function outputs and an easy install. Simply replace the Sound Value decoder and enjoy all of the Tsunami2 features you love.
The 8 function outputs are LED-friendly so resistors are not required for LEDs! (See the wiring diagrams under product documentation for more information). Light effects are fully remappable and offer full access to our 20+ HyperLight effects.
This decoder is designed to replace the factory board in the following HO Bachmann Sound Value Steam Models: 2-6-0, 2-8-0, 4-6-2, 4-8-4 Class J and GS4.
You will feel like you are in the cab with the amazing new features that Tsunami2 has to offer including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, functioning adjustable exhaust cut-off, and firebox flicker. We also offer a large selection of selectable sound effects including: exhaust chuffs(10), bells (12), Whistles (90), couplers, dynamos and more!
This decoder includes a connector to easily add a CurrentKeeper (P.N. 810140 or 810160) to maintain performance over dirty track and switches.
ATOM DCC Block Detector
The Iowa Scaled Engineering ATOM is a reliable, easy-to-install, single-channel DCC block detector. Compatible with a wide variety of other block detectors on the market, the ATOM provides two open collector outputs (one for detection, one for no detection) with optional pull-up resistors and easy pushbutton sensitivity adjustment. Since it is based on a current transformer, the detector maintains isolation between your track and signal systems.
This version has screw terminals for the power and output connections. For our friends invested in C/MRI, we offer an alternate version of the ATOM (part number CKT-BD1-CMRI) with a plug that connects directly into the C/MRI detector motherboard and provides a drop-in replacement for the DCCOD.
FEATURES:
- Isolated, current-transformer based detection for DCC
- Highly sensitive (~1mA, equivalent to a 10k ohms)
- Simple single button sensitivity adjustment
- Two opposite polarity, open-collector outputs (40V / 250mA capable)
- Optional built-in 10k output pull-up resistors
- Powered from 5V to 24V
Typical Applications:
- Detect block occupancy for signal systems
- Activate grade crossing signals
- Trigger sounds
- C/MRI track occupancy inputs
Specifications:
2.0(L) x 1.5(W) x 0.875(H) inches
PX112-2 - HO Power Xtender For 2 Pin Decoders
Keeps locos & sound running during power interruptions caused by dirty or bad track.
Hold up time varies based on decoder load & track conditions.
PX112-2 Plug N Play Install on DH126 & DH166 Series Decoders
PX Body Size 1.575 x 0.547 x 0.315 in
(40mm x 13.9mm x 8mm)
Walthers Layout Control System - Connecting Cable Socket (5/pkg)
Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts! The system is expandable at any time to grow with your layout, and can be used with DCC- or DC-power (a DCC accessory decoder is integrated into the switch machine). The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include a servo-based slow-motion Switch Machine, Power Distribution Block, LED panel indicator/control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.
The Walthers Layout Control System Connecting Cable features:
Easily extend connections to Controllers or Power Distribution Block
Pack of five cables, each 48in (1.2m) long
Fully assembled with servo style connectors
Universal Lighting and Signal Decoder 6-Pack - Light-It pkg(6)
The NCE Light-It Universal Lighting and Signal Decoder can be used with DC or DCC layouts to add all kinds of scenic lighting in structures, constant lighting for car interiors, lamp posts or as an NMRA Signal decoder with 18 aspects. Fully assembled, each includes a built-in warm white LED and resistors. Up to three LEDs (available separately) can be controlled individually and each output is manually dimmable.
- Works on DCC or DC (limited operation on DC)
- Works with loco, accessory or signal addressing
- Built-in warm white LED (can be disabled)
- Up to 3 LEDs may be controlled separately
- Built-in resistors - just connect LEDs
- Functions as an NMRA signal decoder with 18 aspects
- Each output individually dimmable
Universal Cable Connector
For Use with HO, N, and O signals
SCB Interconnect Cable Connector - All Scales Signal System
DH165K0 1.25 Amp HO Scale Mobile Decoder for Kato, Stewart, Atlas & Other Locos
Features:
DH165K0 Fits Kato, Stewart, Atlas & Other
HO Locomotives
Compatible with Sound Bug
Decoder Lock equipped
Current Rating-Motor - 1.25 Amp (2.0 Amps Peak)
Size - 73.07mm x 16.93mm x4.4mm
Installation - Board Replacement
Function Outputs - 6-500mA
Function Type - FX3
Features - Series 5
For Use With Sound Bug Sound Only Decoder
NCE 167 N Scale N14K1 Decoder
Athearn EMD F45, Athearn EMD FP45
Kato Gevo ES44AC, Kato AC4400, Kato C30-7, Kato GE C44-9W, Kato SD40-2 early versions, Kato ES44, Kato SD40, Kato SD40-2 SNOOT, Kato SD45, Kato SD70MAC ,Kato SD70
TrainSpotter with Right-Angle Sensor
The TrainSpotter makes detection of locomotives or rolling stock easy and reliable. Just place the sensor where its invisible light beam will reflect off the object of interest and you are done - no time-consuming or frustrating adjustments! Based on modern silicon technology, this reflective infrared proximity sensor is tolerant of ambient (background) lighting conditions, be it completely dark or under full lights, with no false triggering.
This version features a right angle mounted sensor, sensing objects next to the PCB. This allows the sensor to be mounted next to the track and detect things beside it, avoiding the need to drill up through the ties.
FEATURES:
- Small size (0.25 x 2.25 inches)
- Right-angle sensor (instead of end-mounted) for simple, next-to-track installation
- No adjustment needed!
- Release time of zero or 5 seconds (solder jumper)
- Two opposite polarity, open-collector outputs (40V / 250mA capable)
- Tolerant of ambient (background) lighting conditions - no false triggering
- 24 inch pre-stripped wire leads attached to the sensor
- Powered from 5V to 24VDC
Typical Applications:
- Activate grade crossing signals
- Trigger sounds
- Build an automatic interchange
- Indicate end-of-track in hidden staging yards
- Detect block occupancy for signal systems
- C/MRI track occupancy inputs
Installation:
The detector is designed to be installed up through the benchwork in a 3/8 inch (10 mm) hole. Because the sensor itself is so small, only a single hole is required and no complicated drilling jigs are needed. The sensor can be secured in the hole using a variety of methods such as hot glue or by using a bracket.
Electrical Connections:
The CKT-IRSENSE needs 5 to 24 volts of clean direct current (DC) power to operate. Two opposite polarity outputs are provided, both of which are open drain (otherwise known as open collector) and act like a switch to the ground or negative lead.
Logic level outputs can be generated by connecting a resistor to pull up the output to the positive supply. Other devices, such as LEDs or relays can also be driven directly and the outputs from multiple sensors can be connected in parallel to combine them into one signal.
Specifications:
2.25(L) x 0.25(W) x 0.25(H) inches
By default, the release time is zero, but can be set to 5 seconds by shorting two pads (JP1) on the back of board.
The sensing distance varies with the reflectivity of the object being sensed, but is typically 1.5 inches.
SoundTraxx - Ultra Flexible Hookup Wire, 10ft 30AWG, Black
Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze.
Decoder Buddy Mini 2.2K
The Decoder Buddy Mini was developed to fit into smaller steam and diesel applications. There has also been interest in HOn3 and S-Gauge applications.
PB-110 Power Station - 10 Amp Booster
10 Amp Power Booster recommended for O, G and other large scales. The PB-110 provides true 10 Amps of continuous voltage to your track. Enough to handle MUs of the largest locomotives!
FEATURES:
- Full 10 Amp continuous regulated output
- Exclusive GFCI type automatic reverse loop control
- Automatic 2 second shutdown upon short circuit
INCLUDES:
- Product Manual
- Connectors & Cables
NOTE: Requires an 18-volt, 10-12 amp AC power supply, not included!
LokPilot 5 DCC - 8-pin NEM652 - HO & O Gauge
The LokPilot 5 DCC is the twin brother of the LokPilot 5. The two share almost all characteristics, however, the LokPilot 5 DCC is a pure DCC decoder and cannot be used on analog AC systems. This lack of flexibility comes with a cheaper price.
LokPilot 5 decoders are offered with all common interfaces.
Modes:
The LokPilot 5 DCC is a pure-bred DCC decoder. 14 to 128 speed steps are as natural as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus the decoders register automatically with a suitable DCC system like the ESU CabControl.
The decoder accepts all DCC programming modes and thanks to RailCom the CV values can be read on the main track with RailCom equipped DCC systems. For command stations that only program the CVs from 1-255 auxiliary CV registers exist.
The LokPilot 5 DCC decoder recognizes the Marklin braking sections as well as the ZIMO HLU / ZACKCommands or the Lenz ABC system. Also braking with DCC brake modules or with DC voltages possible. It also stops with a Selectrix brake diode. An ABC automatic shuttle train enables automatic commuting between two train stations.
The LokPilot 5 DCC decoder can be used on analog DC trains. The top speed can be set separately.
The decoder switches between the operating modes fully automatically -on-the-fly-.
Features:
We know that you want your locomotives to be as realistic as possible. Therefore we have the LokPilot 5DCC packed with function outputs. Depending on the interface version, each LokPilot offers 5 DCC Decoder at least 10 amplified function outputs with 250mA output current each. In the executions with PluX22 or 21MTC interface there are 4 outputs to control servos or Logic level outputs added. All-important lighting functions are available. The brightness of each output can be set separately. The decoder masters automatic pushing and pulling when uncoupling for ROCO, Krois and Telex couplings.
Motor control:
The engine control of the LokPilot 5 DCC has been fundamentally improved again. A variably adjustable PWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors.
Operation:
The typical hum is a thing of the past. The load control now has up to10 CVs which can be adjusted for difficult cases. The unique Auto tune function enablesnthe automatic calibration of the decoder to the motor. The LokPilot 5 DCC decoder delivers up to 1.5A of motor current. Enough juice even for older motors.
Operational safety:
On request, a PowerPack can be fitted to the LokPilot 5 DCC to bridge dirty rail sections.
Next18 - NEM 662 DCC Control Decoder
Dimensions: 0.595 x 0.390 (15mm x 10mm)
Direct plug in to locos equipped with Next18 (NEM-662) socket
Features of this decoder:
Silent RunningTM,torque compensated motor drive
Torque Compensation for ultra smooth low speed performance
Motor rating .75 Amp continuous, 1.2 Amp stall
All four function outputs have lighting effects generators
Select from 15 different lighting effects
Full support for LED lighting
Decoder programming lock mechanism
Signal Attachment Cable - All Scales Signal System Dual 4-pin harness DIY set
Decoder Buddy Original
This new board makes for super-easy 21 pin decoder installs from vendors such as Digitrax, ESU, SoundTraxx, and TCS!
Now a 21-pin-friendly board replaces the standard DCC 8-pin loco motherboard and easily allows taking full advantage of all the functions and features of the latest new feature-rich decoders. The benefits of this new Decoder Buddy (DB) board include:
Popular 21-pin decoders from TCS, SoundTraxx, ESU, Digitrax and NCE easily fit in Decoder Buddy?s 21-pin socket
10-pin {14-PIN V5} socket and plug with wire-outs for 21-pin decoder functions
10-pin {14-PIN V5} plug fully removable for easy separation of loco shell and chassis
2.2K Resistors Preinstalled
Digitrax TL1 - Single DCC Function Decoder with Integrated Transponding
Your TL1 can be used as:
1. Function only DCC decoder with transponding
2. Digitrax Transponder
3. Function only DCC decoder without transponding.
Single 125mA (250mA peak) function output for lights or other functions
Function can be turned on/off using F0, F1, F2, F3, or F4
Supports both 2 digit and 4 digit addressing
Programmable from DCC compatible equipment
Configurable Strobe feature lets you simulate flashing lights like FRED, Strobes, Mars Lights, etc.
Compatible with Digitrax DCC Transponding Systems
Approximate size: 0.461 x 0.31 x 0.161 inches (11.7mm x 7.8mm x 4.1mm
Iowa Scaled Engineering - ProtoThrottle Short Red Handle
Upgrade your ProtoThrottle with this premium handle! Includes one (1) short red plastic handle, typically used for the brake lever. The handle is 3/4" long.
Digitrax DCS 240+ LocoNet Advanced Command Station
Supports up to 400 locomotives and throttles.
On-board USB port.
Three RJ12 LocoNet ports
Supports SoundFX and sound decoder programming using Digitrax SoundLoader app over USB.
5amp/8amp Booster with multi-scale capability.
Built-in booster transponding detection provides Operations mode CV read back.
Locomotive reset button.
EZ route setup button and system editable routes.
Improved Programming track.
Updated design.
SCB Interconnect Cable Connector (Short) - All Scales Signal System
HO Signal - Modern Cantilever Bridge (2 Track, 4 Head-Left)
There is no single model railroad accessory that captures the essence of prototypical railroading more than an operating signal system. Whether standalone or as part of an integrated system, a working signal adds both visual and operational interest to your railroad.
The Atlas All Scales Signal System enables you to provide realistic information to your train crews in a simple, yet expandable way. Our growing line of signal heads, masts, and bridges spans most common modeling eras, and are easy to install on your layout. The signals feature true scale dimensions and details, and are available in single and double head arrangements, as well as several multi-track bridge configurations. Regardless of scale, all Atlas signals now utilize a small standardized connector and separate cable to connect to the signal control boards, minimizing the impact of installation on a layout with existing scenery.
The Signal Control Board can operate standalone, or as part of an integrated system to replicate the behavior of many North American prototypes, providing selectable 2 or 3 block (ABS) operation, flashing aspects, approach-only, and PRR and color position light options. It can drive either common cathode or common anode signals, and can be powered by AC or DC. The system can be used on layouts operating on either analog (DC or AC) or Digital Command Control (DCC) power through the use of appropriate block detectors (not available from Atlas), and can also be manually controlled.
ProtoThrottle - Gold - OVR EXCLUSIVE!!
LIMITED EDITION!!
This gorgeous gold color was produced specifically for Otter Valley Railroad!
Get yours while quantities last!
The ProtoThrottle Realistic Control Stand Throttle mimics a standard EMD control stand including full detent throttle and reverser handles, a spring-loaded horn handle, a push-on/push-off bell button, and fully programmable front and rear headlights with a setting for ditch lights. In addition, the ProtoThrottle comes with a robust faceplate machined from aluminum, including prototype bezels, and anodized to give the look and feel of a real control stand.
FEATURES:
- Fully wireless throttle
- Eight detent throttle handle
- Reverser handle with centered position
- Brake handle and spring-loaded horn handle
- Push-on/push-off bell button
- Front and rear headlight knobs with dim and ditch light settings
- Auxiliary buttons that can be assigned to any DCC function
- Works with any standard DCC decoder
- Interfaces to any DCC system (with separate receiver specific to your DCC system)
- Highly configurable to suit your operating style
- Designed and built in the USA!
- Securely store your throttle with the ProtoThrottle Pocket (sold separately)
- EMD-style knob and handle upgrades available from Scottys Model Shop
Specifications:
- Approximate Dimensions: 7.6(L) x 3.2(W) x 3.0(H) inches
- Approximate Weight: 15oz
- Powered by 2x AA batteries (not included)
Zephyr Express: All-in-one Command Station/Booster/Throttle - Starter Set
Zephyr Express gives you simple to use Digitrax Complete Train Control for a great price. It offers simplified advanced train operation for any size layout and is fully expandable. You will not have to start over when you want to do more with your railroad!
Zephyr Express Set Includes:
- DCS52 All-In-One Throttle/Command Station/Booster to run your layout
- PS314 Power supply to provide power to run your DCS52
- One LT1 LocoNet Cable & Decoder Test Kit
- Zephyr Express Quickstart Guide
- Zephyr Express Manual
- Digitrax Decoder Manual
Zephyr Express Offers:
- Cost effective entry level LocoNet Compatible system
- Color 2.4 inch LCD Screen.
- Large Backlit Keypad.
- Speed control knob and direction switch with brake.
- Integrated USB Computer Interface
- Easy 2 and 4 digit addressing.
- Smooth speed control.
Run multiple trains at once without blocking!
- Run up to 20 addresses at the same time on your system.
- Run up to 20 throttles at the same time on your system.
Jump Ports for using DC power packs as additional throttles:
- Use one or two smooth DC power packs as throttles to control DCC equipped locomotives.
- Simple, cost effective way to add more throttles to your Zephyr Express set.
- Makes it easy to share the fun of DCC with layout visitors and young operators.
- Functions on locos controlled by Jump throttles remain active.
Over 9000 Locomotive Addresses:
- Use Address 00 to run one or more locos without DCC decoders
- Two Digit Addressing is easy to use. (Address 01-127)
- Four Digit Addressing-use the number painted on your engines as its address.
3.0 Amps of Power to run multiple trains:
- Booster outputs 13V DC for safe operation in N and HO scales.
Function Control:
- Control lights and sound with 29 functions (F0-F28)
- Function 2 is a special non-latching key that can be used to sound the horn for as long as the key is held down.
- Constant brightness lighting. Headlights can be directional or independently controlled (depending on decoder).
Stationary Decoders, Turnout Control & Turnout Position Reporting:
- Access to stationary decoder control for turnouts and other devices.
- Control 2000+ stationary decoder addresses.
Consisting:
- Universal consisting, Digitrax preferred method. ALL locos can be consisted, even analog locos.
- Advanced consisting, allows only advanced consist capable mobile decoders.
- Basic consisting, program decoders to run on same address.
Decoder Programming:
- Built in read/write programmer that can read and write all CVs.
- Supports Direct programming (Digitrax preferred method). Also supports paged & register mode programming.
- Operations mode programming can be used to program decoders on the layout.
Expandability with Digitrax LocoNet:
- Use Zephyr Express as a starting point for your Digitrax LocoNet System, then add components.
- Use Zephyr Express as an expansion set with Digitrax equipment you already have installed.
- Add Radio or IR via LocoNet. Just plug-in a UR90, or UR92 receiver and add IR and/or Radio throttles.
Evolution Express Advanced 5A/8A - Starter Set
Everything you need to get started with Advanced Digitrax Command Control. Evolution Express is perfect for most home and club layouts. It offers excellent speed control, prototypical consisting, the full range of programming features and much more. Maximum capacity, maximum features. Take it to the max with Evolution Express!
Evolution Express Set Includes:
- DCS210+ Command Station/Booster With Intelligent AutoReverse
- DT602 Super LocoNet Throttle
- UP5 Universal Panel
- PS615 Power Supply
- Evolution Express Manual
The DT602 Advanced Super Throttle & DCS210+ Advanced Command Station Offers:
- Works with compatible LocoNet systems
- Color 2.4 inch LCD Display Screen
- Advanced menu system and displays
- Built-in scrolling help and prompting
- Soft ON/OFF switch, with zero OFF power-drain
- Advanced display Power Saving for longer wireless battery operation
- No more 9V batteries to remove! Throttles are now powered in wireless modes by 3 AA cells!
- Can use recharged AA batteries
- Available in standard tethered or Radio Duplex
- Duplex Scan for available Networks and radio signal strength. Run without cords!
- All throttles come with a LocoNet cord that can be unplugged, and is replaceable
- Dual throttle controls let you control two locos simultaneously
- Run locomotives with encoder click knobs for both speed and direction control
- Full numeric keypad makes loco selection simple
- Control light and sound effects functions with the press of a button
- Control 29 functions (F0-F28).
- Function active/inactive indicators
- Convenient step-by-step throttle option set up
- Supports simplified decoder programming
- Simplified 2 or 4 digit addressing setup
- Over 9,000 locomotive decoder addresses
- Supports turnout and stationary decoder control
- Over 2000 turnout decoder addresses
- Fast clock display
- Recall feature
- Advanced Route editor
- USB Interface
Big System Capacity for Big Layouts:
- Run up to 100 addresses at the same time on your system.
- Run up to 100 throttles at the same time on your system.
Over 9000 Locomotive Addresses:
- Address 00 for operation of one loco or MU consist without decoders
- Two Digit Addressing is easy to use. (Address 01-127)
- Four Digit Addressing lets you use the road number of your engines as their addresses. (Address 0128-9000+)
5 or 8 Amps of Power to Run More Trains:
- Selectable Scale Voltage for Safe Operation in ALL Scales
- Customizable Voltage Settings
- 5 amps of power with included PS615 power supply
- 8 amps with PS2012E power supply (sold separately)
Function Control:
- Control 29 functions (F0-F28).
- Function 2 is a special non-latching key that can be used to sound the horn for as long as the key is held down.
- Constant brightness lighting. Headlights can be directional or independently controlled (depending on decoder capabilities).
Two DCC Outputs are Better than One!
- Use one output for programming decoders while the other runs the layout. No need to shut down the layout to program decoders!
- Use one output for a braking section while the other runs the layout.
Decoder Programming:
- Built in read/write programmer lets you program and read back CV values.
- Supports Paged programming (Digitrax preferred method). Also supports direct, register and ops mode programming.
Consisting:
- Supports Universal consisting (Digitrax preferred method). Allows ALL locos to be consisted prototypically, even analog locos.
- Advanced consisting and Basic consisting, too!
- Nested consisting where consists can be consisted together.
Stationary Decoders, Turnout Control & Turnout Position Reporting:
- Access to stationary decoder control for turnouts and other devices.
- DT602 reports turnout position based on last command sent.
- Control 2000+ stationary decoder addresses.
Routes:
- Turnout List/Route capability to simplify complex yard operations.
- EZ routes button for simplified Command Station route programming
Customizable System Options:
- Turn audible warnings on or off.
- Set up purging options.
- Multi-format command station mode.
- Loco Reset button for easy system purging
UP5 Universal Panel:
- Makes LocoNet hook up simple!
- 2 LocoNet jacks for hooking up your LocoNet network.
- 3 throttle jacks for hooking up throttles and other non-RailSync devices.
Expandability:
- Evolution is just the beginning for large, complex layouts that emphasize prototypical operations.
- With LocoNet you can add more boosters, throttles, power management, detection, transponding, signaling and much more.
- DCS210+ comes with 3 LocoNet ports for easy expandability and a USB interface!
Other Advanced Features:
- IPL updatable firmware for continued product improvements
- Device Query and Device Statistics to help with troubleshooting
- Input Mode to help set up detection on your layout
- Uses Expanded slots
SoundBytes Crossing Bell
(Western-Cullen-Hayes 777 (Electronic)
The SoundBytes Crossing Bell is a simple, fully self-contained sound module that plays a grade crossing bell sound.
FEATURES:
- Prototypical crossing bell sound
- Integrated speaker & volume control
- Easy to install and use
- Ideal for adding sound to grade crossings
- Powered from 5 to 24VDC
Note: Please do not use old model railroad power packs as a DC supply. These often produce large output spikes far in excess of their nameplate voltage ratings, are not suitable for powering modern electronics, and will damage SoundBytes modules.
Operation:
The SoundBytes module needs 5-24 volts of clean direct current (DC) power to operate. Connect the white wire to GND to activate the sound. Leave the white wire disconnected to turn the sound off.
Red Wire = 5V to 24V
Black Wire = GND
White Wire = GND to activate
The volume can be adjusted by using a small screwdriver to turn the white, square potentiometer on the PCB.
Specifications
1.25(L) x 1.25(W) x 1.25(H) inches
Yellow-Green
plus one cable of 942-113 - Plug - Socket extension cable - 48 inches Long
Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts! The system is expandable at any time to grow with your layout, and can be used with DCC- or DC-power (a DCC accessory decoder is integrated into the switch machine). The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include a servo-based slow-motion Switch Machine, Power Distribution Block, LED panel indicator/control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.
See the entire system!
The Walthers Layout Control System Dual Color LED Accessory Controller features:
Compact footprint for space-saving installation
Green/yellow LED indicator - adjustable display to match Switch Machine settings
Single pushbutton operation
Complete instructions with mounting template - use with Control System Turnout Drill Set (#942-140, sold separately)
Fits 1/8inch or 1/4inch (0.3 or 0.6cm) thick panels
Connecting cable included - easily expanded with Extension Cable (#942-113, sold separately)
HO Signal - Hooded Modern (Head Only)
Pkg of 1
SoundTraxx - Ultra Flexible Hookup Wire, 10ft 30AWG, Orange
Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze.
ESU 50210 ECoS 2.1 DCC Command Station,
Full Color Display, MM/DCC/SX/M4, Set including power supply input 90-240V, output 6A / 15V-21V, 150W power supply, German /English manual
The ECoS 50210 is already the second generation of our successful ECoS command station. With the latest ECoS command station, ESU continues to offer state-of-the-art digital technology combined with contemporary functional range and easy handling all this for a fair price-performance ratio.
The ECoS has - like most of the recent central stations - a large coloured display with high resolution. In combination with its ground-breaking and easily operated user interface and excellent contrast values of the coloured screen, ECoS reaches unprecedented ergonomics: unlike all the other central stations, the ECoS can be also operated without a stylus - all symbols and writings are hugely marked and clearly structured.
ECoS has 9 function keys per integrated cab. The light-, and function keys 1 to 8 show the current state of the function via LEDs.
Discover the fascinating possibilities of the ECoS command station on the following pages. But take heed: ECoS performance is so good, that even we had to re-read a few passages to believe it!
Digitrax PS615 - 90W AC/DC 15VDC 6 Amp Power Supply
PS615 90W AC/DC 15VDC 6 amp power supply for use with all Digitrax Command Stations and Boosters operating at 5 amps.
High-efficiency power supply
15 VDC output
Accepts different cord sets
Meets MEPS VI and DOE VI efficiency standards
CE for EM compatibility and IEC 60950, UL, and FCC safety requirements
Full galvanic isolation of output voltage from AC input
RoHS environmentally sensitive manufacturing
Compact and lightweight
Power indicator light
For Use With - Evolution Starter Set
Over current and overload protected
SoundTraxx - Ultra Flexible Hookup Wire, 10ft 30AWG, Yellow
Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze.
Peco PLS-135 Stationary Decoder
Peco Products PLS-135 SmartSwitch Stationary Decoder for use with PLS-100 for DCC control
The Peco-PLS 135 SmartSwitch Stationary Decoder can be operated by a DCC controller, and uses the constant DCC voltage in the rails as its power supply. The decoder is also easy to program, and is compatible with most makes of DCC control systems.
ECoSBoost 7A, MM/DCC/SX/M4, set w/ power supply 120-240V, EURO + US, manual german/English
Indispensable components of any large model railroad are amplifiers (here called Booster): If the power consumption of all of your moving trains including their functions, car illumination, and function models is larger than the current the central station is able to put out, you have to split up your layout into several blocks, the power for which is supplied by their own booster. The ECoSBoost(er) is designed for precisely that task: It is matched perfectly for the use with our ESU ECoS or the Märklin® central station.
MODE OF OPERATIONS:
The ECoSBoost is connected directly to the ECoSlink jack, from where it gets its control signals. Basically it is capable of amplifying and delivering to the track these data formats: DCC, Motorola, Selectrix® and mfx®. Which data format will be put out in a given case, depends of course entirely upon the command station thats being used, and its capabilities: Therefore the booster, connected to an ESU ECoS, will handle DCC, and Selectrix®, while, if attached to a Marklin® central station, it will amplify and deliver Motorola®-, respectively mfx® data signals. Thanks to Plug&Play, all ECoSBoost(ers) are included automatically into a list of extern ECoSlink components, and can be controlled and configured centrally on the ECoS display.
The correct firmware status is essential to make the ECoSBoost work properly with these command stations: If the interior software is too old, the booster will possibly not be recognized. Please check the system requirements.
FUNCTIONS:
ECoSBoost amplifies data signals generated by the digital central station, and delivers them to the designated track outlet. ECoSBoost power comes from an included power supply, featuring a stabilized DC output. Each ECoSBoost is controlled and configured comfortably directly by the ECoS: For each booster you can individually determine its max permissible output current. Whats more, the display can be dialled up to show you the present power consumption of each booster, so you know how much reserves you still got. Extremely sensible is the option to tell each booster individually, weather or not to shut down its section in case of a layout short circuit. For example, if you have your switch (turnout) decoders hooked up to a separate ECoSBoost, you can still control your switches reliably in case of a track short.
FEEDBACK:
An ECoSBoost can do more than amplify and deliver track current: Each one has incorporated, as a standard feature, a feed back function (Global Detector) for the NMRA Bidirectional Communication. With its help, appropriately equipped locos can send back information to the ECoS, as soon as the relevant DCC – norm is adopted. This is immensely helpful in finding the locos position on the layout, or reading out engine data. ECoSBoost reads the data and sends them via the ECoSlink high speed bus to ECoS for further processing.
PROTECTION:
Each ECoSBoost of course meets the relevant requirements regarding safety and operation on a layout: The track outlet is protected against overload as well as short circuits. Of course ECoSBoost can differentiate between a genuine short, and a momentary current drain when passing over switches or gaps. We place value on the indestructibility of the device, just like we do with our mobile decoders.
FUTURE BUILT-IN:
The operational software of each, in an ECoSBoost integrated micro controller can be updated, of course, if need be, and augmented by additional functions: The required upgrade is performed automatically bythe ECoS central station, if necessary. No action on your part is required! In this way your ECoSBoost is literally always up to date!
Decoder Buddy 8 Output Original 21-HW - 21MTC Adapter Board - NEM660 21MTC Integral Connector
Dimensions:
Width: O.67in
Length: 2.20in
Height: 0.35in
(17 mm x 56 mm x 9 mm)
Height may vary slightly
depending on decoder.
Tsunami 2 TSU-2200 Digital Sound Decoder for EMD 2 Diesel
Dimensions: 35 by 18 by 6mm Max. Motor Stall Current: 2A
Max. Function Current: 100mA (each output) Function Outputs: 6
Audio Amplifier: 2 Watts, 8-Ohm Load DCC Track Voltage: 7.5V – 22V
Speakers
The TSU-2200 is a universal 2-amp Digital Sound Decoder. It is suitable for a wide variety of models from HO to S scale, and includes a connector to easily add a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches. Not included
EMD 567 No Transition 0 EMD 645 Turbo 5
EMD 567 Non-Turbo 1 EMD Dual 645 Turbo 6
EMD 567 Turbo 2 EMD 710 Turbo 7
EMD Dual 567 3 EMD 710 G3C-T2 8
EMD 645 Non-Turbo 4
CV 124 Air Compressors CV Value CV 124 Air Compressors
NMRA-Compatible 8-Pin Connector (4pcs)
This set of four 8-pin connectors is designed to facilitate wiring in locomotives equipped with a DCC-ready socket.
PH5 Power Pro 5, DCC Complete System
An updated version of Power Pro Starter set item 524-1.
This 5 Amp starter set has everything you need to get DCC-equipped trains up and running. It includes the user-friendly Pro Cab. You can be up and running in less than 20 minutes.
Contents of the PH5:
- PH5 System Box with two 2-pin plugs
- Pro Cab Throttle
- Coiled cable for cab - 6-wire RJ12 cab bus cable
- Twelve-inch flat cable - 4-wire RJ-H control bus cable
- UTP cab bus panel
- Power Pro system reference manual
- Internationally approved Power Supply with power cable - P519
Do not forget to use a REAL surge protector, not a power strip!
We highly recommend a DCC track output Circuit Breaker like the EB1 v1.1.
Signal Extension Cable - All Scales Signal System Medium - 60inch 152cm
UT6D - Duplex Radio Utility Throttle
FEATURES:
-Works with compatible LocoNet Systems
-Compact size for easy one-handed operation
-Color 1.5 inch LCD Display Screen
-Full numeric keys for easy locomotive selection
-Fine speed control with encoder knob
-Forward/Reverse toggle switch with braking
-On/Off Switch, uses AA or BP600MH batteries
-2 or 4 Digit Locomotive decoder access, provide over
-9,000 loco addresses
-29 Functions
-Digitrax Infrared operation with UR90/91/92
-Duplex wireless with UR93/92
-Duplex Scanner and Duplex settings editor
-Over 2000 turnout decoder addresses
-Locomotive Recall feature
-Convenient Throttle Option Setup
-Detachable LocoNet cable and Lanyard
-Replaces the UT4
SoundTraxx - Wire Harness - ECO-100/TSU-1100 8-Pin Power
Replacement 8-wire power harness for all TSU-1100 or ECO-100 Digital Sound Decoders.
DA-SR - Solder-In, 4 EFX Outputs for Kato Drive & Athearn Genesis
These decoders are built to eliminate annoying motor hum and buzz at slow speeds.
ESU Super thin cable,0.02inch 0.5mm dia. AWG36 multi-stran 30FT 10m All DCC colours available. Orange
TSU-KN1 Tsunami 2 - Digital Sound Decoder
Tsunami2 meets N-Scale! The TSU-KN1 is our first plug and play Tsunami2 N-Scale decoder. Finally, you can get the Tsunami2 features you have been wanting in your N-Scale locomotives! We are excited to introduce a Plug and Play Tsunami2, N-Scale decoder and installation kit. The new TSU-KN1 is designed to fit into Kato N-Scale E, F-units, F40PH, PA and P42 locomotives. Get an easy install and the amazingly realistic sounds plus the features that all Tsunami2 decoders have to offer.
The TSU-KN1 comes with a complete installation kit ensuring an easy install. Also note that the TSU-KN1 is designed with 4 LED friendly function outputs making external resistors unnecessary! Installation kit includes:
TSU-KN1 Decoder
Mini Cube 3 Speaker and Baffle
Speaker Wire
Kapton Tape
2 Sunny White LEDs
Specifications
Dimensions: 55 x 13.8 x 3.2mm
Max. Motor Stall Current: 500mA
Max. Function Current: 100mA (each output)
Function Outputs: 4 - LED Friendly. No resistors necessary!
Audio Amplifier: 1W, 8-Ohm Load
DCC Track Voltage: 7.5V - 22V
Sound Channels: 16
D13WP Decoder - 1.2 Amp with NMRA 8 pin plug
Dimensions: 1.03 x 0.630 x .185 inches (26 x 16.5 x 4.7 mm)
Features of this decoder:
- Silent Running ,torque compensated motor drive
- Torque Compensation for ultra smooth low speed performance
- Motor rating 3/4 Amp continuous, 1.2 Amp stall
- All four function outputs have lighting effects generators
SoundTraxx - Ultra Flexible Hookup Wire, 10ft 30AWG, Brown
Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze.
ProtoThrottle (Black)
The ProtoThrottle Realistic Control Stand Throttle mimics a standard EMD control stand including full detent throttle and reverser handles, a spring-loaded horn handle, a push-on/push-off bell button, and fully programmable front and rear headlights with a setting for ditch lights. In addition, the ProtoThrottle comes with a robust faceplate machined from aluminum, including prototype bezels, and anodized to give the look and feel of a real control stand.
FEATURES:
- Fully wireless throttle
- Eight detent throttle handle
- Reverser handle with centered position
- Brake handle and spring-loaded horn handle
- Push-on/push-off bell button
- Front and rear headlight knobs with dim and ditch light settings
- Auxiliary buttons that can be assigned to any DCC function
- Works with any standard DCC decoder
- Interfaces to any DCC system (with separate receiver specific to your DCC system)
- Highly configurable to suit your operating style
- Designed and built in the USA!
- Securely store your throttle with the ProtoThrottle Pocket (sold separately)
- EMD-style knob and handle upgrades available from Scottys Model Shop
Specifications:
- Approximate Dimensions: 7.6(L) x 3.2(W) x 3.0(H) inches
- Approximate Weight: 15oz
- Powered by 2x AA batteries (not included)
N, TT, HO Scale LokSound 5 Micro DCC/MM/SX/M4 - Next18 Decoder
(SPEAKER AND ENCLOSURE SOLD SEPARATELY!)
Note - If you want sound installed it the decoder, write the sound file number or the locomotive you are putting it into, in the customer comments section at the check out.
For Gauge: N, HO, & TT
The LokSound 5 micro is a little wonder: With only 21mmx10mm footprint, it is by far one of the smallest LokSound decoders we have ever built. Thus it should fit into all N gauge and TT vehicles, but is also suitable for small HO vehicles. All LokSound decoders are equipped with a Next18 interface and are available with adapter plugs to suit all popular digital interface types.
The LokSound 5 micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts.
Operating modes:
The LokSound 5 micro is a true multi protocol decoder. It supports DCC as well as Motorola, Selectrix and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus the decoders register themselves fully automatically on suitable command stations.
This decoder supports all DCC programming modes and thanks to RailCom, you may read out the CV values on the main, provided you have a command station supporting RailCom. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255.
Motorola users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Control Unit 6021.
The M4 protocol supports the automatic registration on mfx compatible central units.
The LokSound decoder supports the Marklin braking sections just as well as the ZIMO HLU braking commands or the Lenz ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations.
The LokSound 5 micro decoder is also suitable for analogue DC and AC (!) layouts.
Sound:
The LokSound 5 micro decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A double class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 ? 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity.
The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles.
The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles.
Functions:
Despite its small dimensions, the LokSound 5 micro decoder has at least 6 amplified function outputs as well as one logic output. There are two more logic outputs on the Next18 interface, which alternately may be employed to control RC servos. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements ? known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO and Krois, as well as Telex couplers.
Motor control:
Motor control of the LokSound 5 micro has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique Auto Tune function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 micro decoder supplies sufficient motor current (up to 0.75 A) for the intended applications.
LokSound 5 micro DCC:
The LokSound 5 Micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts.
Digitrax LNWI LocoNet WiFi Interface
The LNWI allows you to connect compatible WiFi devices to LocoNet and run trains using compatible throttle apps. The apps available can be downloaded from this page.
Wi-Fi interface to a Digitrax LocoNet for up to four compatible mobile Wi-Fi devices and Apps.
Compatible with most Android and Apple devices running supported throttle apps
Easy Setup and Configuration. A single LNWI works out of the box, with no additional configuration required.
Provides up to 32 LocoNet Throttle functionality per LNWI, with compatible apps and Command Station.
Up to 8 LNWI can be supported per LocoNet
Multiple LNWI units automatically resolve SSID with no additional configuration
Optional Wi-Fi WPA2 security for layout operations in public.
Option switches to fully customize all device settings
LocoNet Compatible
NCE Decoders -- N14IP - Plug In For ConCor PA1, 4-8-4, etc. 4 Function N Scale
Available with an eight pin plug in. Four function outputs. 1 Amp rating, 1.25 Amp peak. Measures 1.15inch x 0.4inchx 0.12inch.
This is an EPF (extended packet format) decoder supporting:
Silent Running TM motor drive
Torque Compensation for ultra smooth low speed performance
Programmable Start, Mid and Maximum speed works for all speed modes
Motor rating 1.3 Amp continuous, 2 Amp peak (stall)
Four function outputs each with independent lighting effects generators
Select from 15 different lighting effects (Mars, strobes, beacon, flicker, etc)
Lighting outputs can be mapped to different functions
Uploadable speed table interpolated to 128 speed steps
Decoder assisted consisting
Support for all forms of DCC programming
Decoder programming lock mechanism
Brake on DC feature assists automatic train control
SoundTraxx - Ultra Flexible Hookup Wire, 10ft 30AWG, Green w/ Yellow Stripe
Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze.
Soundtraxx 884008 HO Tsunami 2 TSU-21 Pin PNEM Digital Sound Decoder for Steam
21Pin board
The TSU-PNEM is a 21 Pin sound decoder suitable for use in many manufacturers models such as those made by Atlas Athearn and InterMountain Models. It is suitable for a wide variety of models from HO to S scale.
9 EMD Prime Movers
Dimensions: 30.5 x 15.5 x 6.5mm
Max. Motor Stall Current: 1A
Function Outputs: 6
Max. Function Current: 100mA (each output)
Audio Amplifier: 2 Watts, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
16-bit Digital Sound
1A Motor Stall Current
Over 50 Sound Effects with Selectable Reverb
Functioning Engine, Train and Dynamic Brakes
Reactive Dynamic Digital Exhaust
6 Function Outputs with over 20 Hyperlight Effects
Hyperdrive2 Advanced Motor Control
DCC Track Voltage 7.5V – 22V
No speaker included
SoundTraxx HO 852003 (MC2H104OP) 4 Function Dual Mode Decoder
This is a HO Scale 4 function decoder includes a 9 pin JST to 8 pin NMRA wiring harness and can be used in many DCC ready models that have a NMRA 8 pin socket. This decoder will operate in both DC and DCC
Features:
4 Function DC/DCC Motor Decoder
8 Pin Plug and Play Format
25mm x 16mm
Supports Short and Long Addresses
Supports Advanced Consisting
14, 28, and 128 Speed Steps
Standard and User Loadable Speed Tables
High Frequency Silent Motor Drive
Load Compensation
Directional and Rule 17 Lighting
Hyperlight Lighting Effects
Compatible WIth NMRA DCC Standard and RPs
4A for G Scale, Screw Terminals, No Recorded Sound Files
For Scale: O & S The LokSound V5 XL decoder is intended for use in all applications where the required power exceeds the current limits of a LokSound 5 decoder. Ideally, these are 0 and S scale locomotives. Despite its compact dimensions of only 50.8 mm x 25.4 mm x 14 mm, the V5 XL is equipped with a dual speaker output and integrated PowerPack. The LokSound V5 XL Screw is equipped with multiple screw connectors.
Power Cab DCC Starter System - 2 Amps
An entire DCC system in the palm of your hand! The Power Cab system can operate one or two HO locomotives. Installation is a snap. Hook two wires to your track and plug in the cab. Then you are off and running trains!
The Power Cab kit contains:
- Power Cab
- 7ft Power Cab Cable
- PCP Power Panel
- Power Supply
- Pro Cab Coiled Cord
- Manual
The Power Cab represents an Entry Level starter system for small layouts but has all the same features as the high end 5 amp PH-Pro. Its limitations are found in the number of expansion options it can connect to and support.
The PowerCab is well-liked because it is a full featured NCE DCC system with a true programming track output capability designed to handle Sound Decoders without any programming issues. Some people with a 5 and 10 amp PH-Pro system purchase a Power Cab system for the full programming track capability and to add an additional throttle for the layout.
The Power Cab offers the best Programming Track capability of all the NCE systems. It offers a safe low current programming track output mode where it is safe to test decoders. At the same time, the programming track current from the Power Cab has been raised enough to accommodate the special needs of sound decoders which can have problems working properly with older style programming track outputs. No 3rd party programming track booster is required when using a Power Cab.
Up to 256 turnouts can be DCC controlled using DCC accessory turnout decoders. They can be controlled from the PowerCab throttle or any NCE throttle with an accessory control button.
The Power Cab allows you to add up to 3 NCE cab bus based accessory devices to the system using 3 special cab addresses. This does NOT take away from the number of throttles [6] you can use with the Power Cab system.
2-Amp 12-Volt Filtered DC Power Supply - Walthers Layout Control System
Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts! The system is expandable at any time to grow with your layout, and can be used with DCC- or DC-power (a DCC accessory decoder is integrated into the switch machine). The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include a servo-based slow-motion Switch Machine, Power Distribution Block, LED panel indicator/control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.
See the entire system!
The Walthers Layout Control System 2-Amp 12V Filtered DC Power Supply features:
12V filtered DC power designed especially for Walthers Layout Control System
Powers up to 16 switch machines using Distribution Blocks (#942-111, sold separately)
Perfect for powering all types of layout accessories
DA-SR - 4-Pack #106 Solder-In, 4 EFX Outputs for Kato Drive & Athearn Genesis
1.3 Amp (2 Amp peak) rating and 4 EFX outputs.
These decoders are built to eliminate annoying motor hum and buzz at slow speeds.
ProtoThrottle - Pink - OVR EXCLUSIVE!!
LIMITED EDITION!!
This beautiful pink color was produced specifically for Otter Valley Railroad!
Get yours while quantities last!
The ProtoThrottle Realistic Control Stand Throttle mimics a standard EMD control stand including full detent throttle and reverser handles, a spring-loaded horn handle, a push-on/push-off bell button, and fully programmable front and rear headlights with a setting for ditch lights. In addition, the ProtoThrottle comes with a robust faceplate machined from aluminum, including prototype bezels, and anodized to give the look and feel of a real control stand.
FEATURES:
- Fully wireless throttle
- Eight detent throttle handle
- Reverser handle with centered position
- Brake handle and spring-loaded horn handle
- Push-on/push-off bell button
- Front and rear headlight knobs with dim and ditch light settings
- Auxiliary buttons that can be assigned to any DCC function
- Works with any standard DCC decoder
- Interfaces to any DCC system (with separate receiver specific to your DCC system)
- Highly configurable to suit your operating style
- Designed and built in the USA!
- Securely store your throttle with the ProtoThrottle Pocket (sold separately)
- EMD-style knob and handle upgrades available from Scottys Model Shop
Specifications:
- Approximate Dimensions: 7.6(L) x 3.2(W) x 3.0(H) inches
- Approximate Weight: 15oz
- Powered by 2x AA batteries (not included)
ESU Super thin cable,0.02inch 0.5mm dia. AWG36 multi-stran 30FT 10m All DCC colours available. Purple
Signal Driver Cable Kit
Materials for making 2 Signal Driver Cables for SE8C. Includes 30’of 10-wire Signal Driver ribbon cable & 8 10-Pin sockets.
Use this kit to make signal driver cables to connect your SE8c to the signals on the railroad. Make the cables any length that you desire and place the signal connectors at the locations where you will install signals. All the signals are carried neatly in the ribbon cable so you can avoid a “bird’s nest†under your layout.
HO & N Turntable Advanced Control Module - For DCC Operation
Product Information:
The Walthers Cornerstone Turntable Advanced Control Module makes it possible to operate your Motorized Turntable using DCC, serial UART, keypad or switch contacts. For DCC applications this circuit will function as a stationary decoder with no CV or programming required. The Turntable Advanced Control Module includes the circuit, Connection cable and complete instructions.
Adds DCC, serial UART, keypad and switch contact input modes including:
- DCC control using stationary decoder protocols
- Numeric Keypad
- Button per track
- Rotary selector switch
- Control box emulation
- Serial Rx/Tx UART port
- Digital outputs for remote dual digit display and controlling track power relays to selectively power service tracks automatically
Measures: 2-3/4in (70mm) x 4-3/16in (107mm)
Please Note: This unit is designed for use only with the following Motorized Turntables, each sold separately:
- HO Scale 90ft 933-2860
- HO Scale 110ft 933-2851
- HO Scale 130ft 933-2859
- N Scale 130ft 933-2618
Mini-Panel - Automation Controller for NCE DCC Systems
Use one button to control multiple switches or macros on your NCE DCC system. You can have up to 30 pushbuttons, toggle switches, block detectors,etc. Can be connected for control of turnouts, signals and other devices. Easy programming, just plug in a Pro Cab or a Powercab. Simple hook up, one Cab Bus connection and 2 wires for each pushbutton or other input device. Can be used to perform simple automatic train control and other layout automation tasks.
DCC Specialties RRamp Meter V1
- The only inexpensive device that accurately measures DCC Volts/Amps.
- Also measures AC and DC Volts/Amps.
- Costs less than DVMs that cannot measure DCC. Ver II rated at 10 Amps
- Measures true RMS Volts/Amps, +/- 2%.
- Suitable for all scales.
- No batteries required.
- Designed for Left/Right-hand use.
- PCB length 5.63 inches
9-Pin JST To NMRA 8-Pin Wiring Harness
This harness easily converts TSU-2200 or ECO-200 Digital Sound Decoders to plug and play decoders for use with models equipped with an NMRA 8-pin socket.
9-pin to DCC Medium Plug - Short Harness (1 inch)
DN163L0A
Fits 2011+ Version Walthers (Life-Like) PROTO N GP20 Diesel
Current Rating-Motor1.00 Amp (1.25 Amps Peak) Size0.35†x 2.12†x 0.044†(8.89mm x 53.848mm x 11.176mm) Installation Board replacement decoder Function Outputs 6-500mA
Peco PLS 130 SmartFrog V6
SMARTFROG
The Smartswitch(TM) system can be used to operate turnouts, semaphore signals, level crossing gates and barriers and other moving features. This Smartfrog unit facilitates changing frog polarity when using the Smartswitch system to operate turnouts. Watch the videos to see the potential uses and ease of installation of this system and see our Shows You How booklet No. 24 Operating Points and Signals.
Recommended to be used with:
Suitable for all scales and gauges up to and including Gauge 0
NMRA 8-Pin Plugs pkg(10)
ESU Super thin cable,0.02inch 0.5mm dia. AWG36 multi-stran 30FT 10m All DCC colours available. Blue
ESU Super thin cable,0.02inch 0.5mm dia. AWG36 multi-stran 30FT 10m All DCC colours available. Green
Adapter Board 21MTC to 9-Pin JST (for Athearn locomotives)
Perfect for Athearn (and others) this new 9 pin (female) 21MTC (Male) adaptor board allows the popular 6 output ESU 21 MTC LokSound and LokPilot decoders to be easily added to your favorite locomotive.
More Functions:
More and more locomotives now have front and rear headlights and front and rear flashing ditch lights. In order to accommodate for this in DCC 6 function outputs need to be used. As 8 and 9 pin DCC plugs only allow for 3 and 4 outputs respectively, this new adaptor board will allow easy conversion to our 6 function decoders. 4 Outputs though the 9 pin plug and 2 more on solder pads.
1.5 Volt Lighting:
As Athearn normally uses 1.5 volt bulbs it is often easier to use the supplied resistance in the Motherboards for those lights. This new adaptor board also includes 1.5 volt light resistance for the additional 2 outputs that do not already go through the 9 pin JST plug. ESU decoders also include the ability to dim the outputs to match perfectly the onboard resistance with the adaptor resistance if needed. There are also solder bridges for bypassing this resistance if bulbs are not used.
In addition there are extra common pads and solder pads for speakers directly on the adaptor board.
Adding Great DCC and Sound with all the proper lighting has never been so easy.
HO Signal Hooded Modern (Single Head-Right)
TrainSpotter
The TrainSpotter makes detection of locomotives or rolling stock easy and reliable. Just place the sensor where its invisible light beam will reflect off the object of interest and you're done - no time-consuming or frustrating adjustments! Based on modern silicon technology, this reflective infrared proximity sensor is tolerant of ambient (background) lighting conditions, be it completely dark or under full lights, with no false triggering. Combined with a discrete under-track installation, this low-profile sensor solves many of the challenges that plague other optical detector products.
FEATURES:
- Small size (0.25 x 2.25 inches)
- Simple, discrete under-track installation
- No adjustment needed!
- Release time of zero or 5 seconds (solder jumper)
- Two opposite polarity, open-collector outputs (40V / 250mA capable)
- Tolerant of ambient (background) lighting conditions - no false triggering
- 24 inch pre-stripped wire leads attached to the sensor
- Powered from 5V to 24VDC
Typical Applications:
- Activate grade crossing signals
- Trigger sounds
- Build an automatic interchange
- Indicate end-of-track in hidden staging yards
- Detect block occupancy for signal systems
- C/MRI track occupancy inputs
Installation:
The detector is designed to be installed up through the benchwork in a 3/8 inch (10 mm) hole. Because the sensor itself is so small, only a single hole is required and no complicated drilling jigs are needed. The sensor can be secured in the hole using a variety of methods such as hot glue or by using a bracket.
Electrical Connections:
The CKT-IRSENSE needs 5 to 24 volts of clean direct current (DC) power to operate. Two opposite polarity outputs are provided, both of which are open drain (otherwise known as open collector) and act like a switch to the ground or negative lead.
Logic level outputs can be generated by connecting a resistor to pull up the output to the positive supply. Other devices, such as LEDs or relays can also be driven directly and the outputs from multiple sensors can be connected in parallel to combine them into one signal.
Specifications:
2.25(L) x 0.25(W) x 0.25(H) inches
By default, the release time is zero, but can be set to 5 seconds by shorting two pads (JP1) on the back of board.
The sensing distance varies with the reflectivity of the object being sensed, but is typically 1.5 inches.
CurrentKeeperII
Introducing the More Compact CurrentKeeperII!
Not all models are made the same, and some are a TIGHT fit for a decoder installation. The CurrentKeeper is now available in two sizes to fit more models and make your installs easier! Keep more of your trains running even over dirty track and switches!
The NEW SoundTraxx CurrentKeeperII is designed to add additional power capacity to any decoder installation. It can be used to overcome dirty track, limited electrical pickup or dead frogs to ensure reliable operation of any locomotive in your fleet. It measures 20.1 x 13.2 x 11mm.
● Maintains power to the decoder for up to 10 seconds during electrical interruptions
● Compatible with NMRA DCC Standards & Recommended Practices
DC-21 Pin Motherboard for LEDs
9-pin to Wires - Wire Harnesses (5/pkg)
Digitrax 9 pin to bare wire harnesses.
ESU Super thin cable,0.02inch 0.5mm dia. AWG36 multi-stran 30FT 10m All DCC colours available. Black
Power Cab Firmware Upgrade Chip 1.65B
LokPilot 5 Basic 8 Pin NEM652 Decoder
While LokPilot 5 decoders can undoubtedly meet all imaginable requirements of even the most demanding experts, many model railway eras are looking for a robust, high-quality DCC decoder for your standard requirements, which should also be affordable.
The LokPilot 5 Basic was developed with the aim of offering a modern decoder with a reasonable range of functions at a reasonable price.
The LokPilot 5 Basic comes in two versions: In addition to a version with an 8-pin NEM interface, a version with 21MTC interface is also available. This makes the LokPilot 5 Basic particularly suitable for use in track H0 vehicles.
Modes
The LokPilot 5 Basic is a pure-bred DCC decoder. 14 to 128 driving steps are as self-evident as 2- and 4-digit addresses. Up to 20 functions can be triggered. Thanks to RailComPlus (R), the decoders log in fully automatically to a suitable digital center.
It masters all DCC programming modes and thanks to RailCom(R) the CV values can be read out on the main track with suitable control panels. Auxiliary registers exist for control panels that can only program the CVs from 1-255.
The LokPilot 5 Basic Decoder detects the Marklin(R) brake distances as well as the Lenz(R) ABC system. Braking with DCC brake blocks or dc voltage is also possible. The LokPilot 5 Basic Decoder can be used on analog DC webs. The maximum speed can be set separately. The decoder switches on-the-fly fully automatically between operating modes. Most of the time, nothing needs to be adjusted.
Functions
The LokPilot 5 Basic has 4 reinforced function outputs in each version. In the 21MTC interface, there are 8 logic-level outputs at the interface, two of which are also suitable for controlling servos. All important lighting functions are available. The brightness of each output can be set separately.
Motor
The motor control of the LokPilot 5 Basic delivers up to 0.9A continuous current. A variable PWM clock frequency from 10kHz to 50kHz ensures super-quiet operation, especially for bell anchor motors ? The typical hum is a thing of the past. The load control can be adapted to difficult cases with up to 10 CVs. The unique Autotune function allows the decoder to be automatically measured against the motor.
Operational reliability
On request, a PowerPack can be connected to the LokPilot 5 Basic to bridge dirty rail cuts
SoundTraxx - Ultra Flexible Hookup Wire, 10ft 30AWG, Gray
Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze.
Toggle Switch - ON-OFF 2 Position SPST Latching Toggle Switch AC 125V/6A - Note main body is Black in Colour not Red
6mm hole - 4 pcs
LokSound V5 DCC Micro 8-Pin Sound Decoder
(SPEAKER AND ENCLOSURE SOLD SEPARATELY!)
Note - If you want sound installed it the decoder, write the sound file number or the locomotive you are putting it into, in the customer comments section at the check out.
For Gauge: N, HO, & HOn3
21mm x 10mm (0.827 x 0.394 inch)
The LokSound 5 DCC Micro has an NMRA 8-pin Plug [via adapter Next18 to 8-Pin Plug] and can be plugged into a circuit board with an NMRA 8 pin female receptacle. With a footprint of 21mm x 10 mm it is one of the smallest full-featured sound decoders available. The V5 DCC Micro is also suitable for H0 locomotives where space is an issue. LokSound V5 DCC Micro decoders are equipped with a Next18 interface and are available with adapter plugs to suit all popular digital interface types.
Consult your locomotive manual to determine the appropriate type of decoder.
Operating Modes:
The V5 decoder supports all DCC programming modes! There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255.
The LokSound 5 decoder supports the Märklin® braking sections, ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. The locomotive with a LokSound 5 decoder will also come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations.
The LokSound 5 decoder is suitable for analog DC operation, AC and DCC command control.
Sound:
The LokSound V5 decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and for all practical purposes, one cannot detect any difference to the original. A dual class D audio power amplifier with 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity.
The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail movements. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your locomotives.
Functions:
Subject to the type of interface, every LokSound V5 Micro has at least 6 amplified outputs as well as one logic output with multiple lighting functions available. The brightness of each output may be adjusted separately.
Motor control:
The LokSound V5 Micro decoder supplies up to 0.75A motor current and motor control has been improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz results in silent operation, particularly for coreless motors making motor hum a thing of the past. Load control can now be adjusted with up to 10 separate CVs and will manage even the most difficult motor control issues. The unique Auto-Tune function facilitates the automatic calibration of the decoder to perfectly match the motor.
Soundtraxx - TSU8F -PNP GE, 8Function Tsunami 2 Sound Decoder - Plug and Play Form Factor
The TSU-PNP8 is a universal factory board replacement sound decoder suitable for use in many manufacturers diesel models such as those made by Atlas, Athearn, Bowser, Kato and InterMountain Models. It is suitable for a wide variety of models from HO to S scale. The TSU2-PNP8 includes a connector to easily add a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches. There are two additional function outputs added to the existing TSU2-PNP design using the same lighting circuit and processor pins added for FX7 and FX8. Lighting outputs are compatible with 12-14V bulbs, 1.5V bulbs or LEDs with external resistors.
Features:
Tsunami2 diesel sound decoders are full of new features including over 50 sound effects including engine startup and shutdown, engine prime mover through all eight notches, Straight-to-8, HEP mode, 13 bells, over 40 airhorns, 4 air compressors, dynamic brakes, radiator fans, brake squeal, and more!
Each diesel version (EMD, GE, etc.) contains up to 9 manufacturer specific prime movers (Turbo, Non-turbo, etc.)
First ever Diesel Dynamic Digital Exhaust (DDE) for a more authentic operating experience
Startup, shutdown and exhaust through 8 notches
Automatic or manual notching
Functioning dynamic brake with variable load sound and adjustable braking rate
Over 40 air horns
Selectable compressors, bells, and couplers
First ever Fireman Ed is ready to work on the locomotive, with general service, cab sounds and more!
Clickety-clack, fueling, and authentic cab chatter add realism
Prototypically correct HEP modes and steam heat for authentic passenger train operations
Tsunami2 Overview:
The Tsunami2 is an all-new premium flagship decoder from SoundTraxx, packed with many new features and sound effects to help enhance the realism and fun with both sound and operation. Tsunami2 leads the industry in processing power with a 32-bit processor that provides the necessary horsepower to support 28 functions, 16 polyphonic sound channels, tons of sound and lighting effects, and advanced motor control.
Tsunami2 Digital Sound Decoders integrate a full-featured sound system, Hyperlight lighting effects, Hyperdrive2 advanced motor control, and a DCC decoder into a single package. Tsunami2 Digital Sound Decoders offer over 50 individual sounds, and over 20 lighting effects in each model!
We have added a host of new recordings including: whistles, horns, bells, compressors – and remastered favorites from years past. These new recordings provide nearly limitless choices for your customer! Multiple prototypes in every model means no time spent on a computer downloading files or purchasing special programs. In addition, more powerful audio output, two volume mixers, and our ever-popular Equalizer make the digitized recordings of real engines loud, clear and ultra-flexible.
PSXX2 - Circuit Breaker - 2 Block, 0-10 Amps
The All-New, Upgraded, DCC Specialties PSXX Circuit Breakers Are Here!
The PSXX is designed to specifically handle low power starter systems:
- NCE Power Cab
- Digitrax Zephyr
The PSXX has a default trip rate of 2.0 amps.
The PSXX series has the most reliable operating features that protect model railroad equipment and wiring from damage during a short circuit, including fast-acting, solid-state electronics.
The Power Shields are available in 1, 2, and 3 circuit-breaker models, allowing you to divide the output of a single booster into independent power districts.
The PSXX circuit board is wired between the DCC systems booster and the track bus.
The PSXX includes screw terminals for easy connections from the booster and to the track. There is also an extra pair of terminals for linking the booster power input wires to additional PSXX breakers should you need to add extra PSX protected power districts.
Tsunami 2 TSU-1100 Digital Sound Decoder for Steam Models
Dimensions: 27 by 10.5 by 5mm Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output) Function Outputs: 6
Audio Amplifier: 1 Watt, 8-Ohm Load DCC Track Voltage: 7.5V – 22V
HO LokPilot 5 DCC/MM/SX/M4, 21MTC NEM660
The LokPilot 5 is the most important representative of the LokPilot family and is suitable for almost all questions in locomotives of gauge H0 and 0.
LokPilot 5 decoders are offered with all common interfaces.
MODES:
The LokPilot 5 is a real multi-protocol decoder. He masters the data format DCC as well as Motorola, Selectrix and M4. In DCC format, 14 to 128 speed steps are as natural as 2 and 4-digit addresses and up to 32 functions. Thanks to RailComPlus, the decoders log on to a suitable digital center fully automatically.
It masters all DCC programming modes and, thanks to RailCom, the CV values on the main track can be read out with suitable control centers. Auxiliary registers exist for control centers that can only program CVs from 1-255.
Motorola users benefit from up to 28 speed steps with 255 addresses. Three additional Motorola addresses enable the activation of 16 functions. A built-in programming mode also makes reprogramming possible with the venerable Control Unit 6021.
The M4 protocol enables automatic registration at mfx-compatible control centers. All 32 possible function keys are offered here.
The LokPilot 5 decoder recognizes the Marklin braking distances as well as ZIMO HLU / ZACK commands or the Lenz ABC system. Braking with DCC brake modules or with DC voltage is also possible. It also stops with a Selectrix brake diode. An ABC automatic shuttle train enables automatic commuting between two stations.
The LokPilot 5 decoder can be used on analog DC and AC railways.The decoder switches between the operating modes fully automatically on-the-fly. Usually nothing needs to be set.
FEATURES:
We know that you want your locomotives to be as realistic as possible. Therefore, we packed the LokPilot 5 with function outputs. Depending on the interface version, each LokPilot 5 decoder offers at least 10 amplified function outputs with 250mA output current each. In the versions with PluX22 or 21MTC interface, 4 outputs are added to control servos or logic level outputs. All important lighting functions are available. The brightness of each output can be set separately. The decoder masters the automatic pressing and detaching when uncoupling for ROCO, Krois and Telex couplings.
MOTOR CONTROL:
The engine control of the LokPilot 5 has been fundamentally improved again. A variably adjustable PWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors - the typical hum is a thing of the past. The load control can now be adapted to difficult cases with up to 10 CVs. The unique Autotune function enables the decoder to be automatically calibrated to the motor. With up to 1.5A motor current, the LokPilot 5 decoder provides enough juice even for older motors.
PROTECTION:
Of course, all function outputs and the motor output are protected against overload. We want you to enjoy your decoder for as long as possible.
Turntable Power Supply for Cornerstone Turntables - 800mA, 16V DC Output
Product Information
Power your Walthers Cornerstone HO or N Scale Turntables (sold separately) quickly and easily with this plug-in wall unit featuring:
Installs in minutes - instructions included
Independent 800 ma 16VDC filtered power supply
Includes adapter cord to connect to turntable
Positive contact barrel-type connectors
Intertek listed
Made especially for use with Cornerstone HO 90Ft (933-2860), 110Ft (933-2851) and 130Ft (933-2859), and N Scale 130Ft (933-2618) Motorized Turntables, each sold separately - may also be used with earlier N Scale 130Ft 933-2616, HO 130Ft 933-2850 and HO 90Ft 933-2849 Turntables.
PLEASE NOTE: Unit operates on 120V (standard North American house current) only.
DH165A0 - HO 1.0 Amp Scale Mobile Decoder
Features:
-Fits Athearn Genesis, Kato, Stewart, Atlas & Other HO Locomotives!
-Compatible with Sound Bug Sound Only Decoders
-Decoder Lock equipped
-1.25 Amp (2.0 Amps Peak)
Size: 2.877 x .667 x .173in
(73.07mm x 16.93mm x4.4mm)
Installation: Board Replacement
Function Outputs: 6-500mA
For Use With: Sound Bug Sound Only Decoder
CurrentKeeper
DIMENSIONS:
40 x 6 x 11mm
The SoundTraxx CurrentKeeper is designed to add additional power capacity to any decoder installation. It can be used to overcome dirty track, limited electrical pickup or dead frogs to ensure reliable operation of any locomotive in your fleet.
SoundTraxx - Ultra Flexible Hookup Wire, 10ft 30AWG, Red
Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze.
HO, N & Z Scale - 1 Amp Economy Wired Decoder, 2 Functions
Features:
- Digitrax LocoMotion® System
Your locomotives look like the real thing.
The Digitrax LocoMotion® System makes them run like the real thing, too!
- Torque Compensation for smooth as silk silent operation.
- 128 Speed Step operation (14 or 28 steps can also be used).
- Momentum with acceleration and deceleration.
- Normal Direction of Travel is user selectable.
- Switching Speed feature for easier and faster access to yard speeds.
- 3 Step Speed Tables set start, mid and max voltage for custom control.
- 28 Step Speed Tables with 256 level resolution for precise control.
- SuperSonic motor drive for silent operation.
- FX3 Function outputs for prototypical lighting effects and on/off control.
- Constant Brightness Lighting with directional or independent control.
- Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
- FX3 & Standard Function Qualifiers operate functions based on direction,
F0 on or off, direction and F0, and whether loco is moving.
- Function Remapping for custom function setup.
- Master Light Switch turns off all lights & functions with one keystroke.
- Decoder Lock equipped.
- Transponder equipped ready for transponding on your layout.
- All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline.
- Decoder Reset CV with or without speed table reset.
- Motor Isolation Protection prevents damage to your decoder.
- Basic, Advanced & UniVersal Consisting
- 2 Digit and 4 Digit Addressing.
- Works with most DCC-ready Z, N, and HO scale locomotives up to 18V track voltage. UP6Z can be used to drop track voltage.
- DCC Compatible
- FCC Part 15, Class B RFI compliant
Note: DZ123 does not have Scaleable Speed Stabilization (Back EMF)
DCC Specialties RRamp Meter V2
The only inexpensive device that accurately measures DCC Volts/Amps.
Also measures AC and DC Volts/Amps.
Costs less than DVMs that cannot measure DCC. Ver II rated at 10 Amps
Measures true RMS Volts/Amps, +/- 2percent.
Suitable for all scales.
No batteries required.
Designed for Left/Right-hand use.
PCB length 5.63 inches; Enclosure length 4 inches, width 2 inches, height 1.25 inches
- Version II RRamp Meter with Enclosure and Clip Leads
HO & N Scale TSU-N18 Tsunami2 Sound Decoder for Electric Locomotives
Dimensions: 25 x 10.5 x 4.1mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 6
Audio Amplifier: 1 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 16
BIG sound in a small package! The small size of our new Tsunami2 TSU-N18 decoder makes it ideal for both N and small HO models that come equipped with a NEXT18 socket. Installations can not get any easier. Simply plug this decoder in and enjoy all of the Tsunami2 features you know and love!
You will feel like you are in the cab with the amazing new features that Tsunami2 has to offer including: Reactive dynamic digital exhaust, functioning locomotive and train brakes, injectors, power reverse, and firebox flicker. Soundtraxx also offers a large selection of selectable sound effects including: exhaust chuffs(10), prime movers (up to 12), bells (12 in each diesel version), whistles (90), airhorns (40+), couplers, dynamos and more!
The TSU-N18 can be wired to a CurrentKeeper to maintain performance over dirty track and switches.
HO Mobile Decoder fits many Kato Locos (1.25 Amp)
-DH165K1A fits many Kato HO Diesel Locomotives
-Compatible with Digitrax Sound Bug
-Decoder Lock equipped
Current Rating-Motor - 1.25 Amp (2.0 Amps Peak)
Size - 2.877 x .667 x .173 inches (73.07mm x 16.93mm x4.4mm)
Installation - Board Replacement
Function Outputs - 6-500mA
Function Type - FX3
Features - Series 5
DHDP Dummy Plugs (5 pack)
Product Information
Accessory wire harnesses match those included with Digitrax DH series decoders. Extra harnesses allow you to share DH Series decoders among several locos in your fleet. Dummy plugs allow for non-DCC operation of harness equipped locomotives.
Tsunami2 Digital Sound Decoder - 21-Pin NEM form factor - GE Diesel Locomotives
Dimensions: 30.5 x 15.5 x 6.5mm
Max. Motor Stall Current: 1A
Max. Function Current: 100mA (each output)
Function Outputs: 8
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V, 22V
Sound Channels: 16
The NEW TSU-21PNEM8 is a 1-amp Digital Sound Decoder with 8 function outputs. It is designed for easy plug-in operation when mated to a 21-pin NEM connector. You will feel like you are in the cab with the amazing new features that Tsunami2 has to offer including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and firebox flicker. We also offer a large selection of selectable sound effects including: exhaust chuffs(10), prime movers (up to 12), bells (12), Whistles (90), airhorns (40+), couplers, dynamos and more!
The TSU-21PNEM8 can be wired to a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.
SoundTraxx - Ultra Flexible Hookup Wire, 10ft 30AWG, Green
Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze.
Dual-Color LED Fascia Turnout Controller
plus one cable of 942-113 - Plug - Socket extension cable - 48 inches Long
Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts! The system is expandable at any time to grow with your layout, and can be used with DCC- or DC-power (a DCC accessory decoder is integrated into the switch machine). The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include a servo-based slow-motion Switch Machine, Power Distribution Block, LED panel indicator/control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.
See the entire system!
The Walthers Layout Control System Dual Color LED Fascia Turnout Controller features:
Can be installed in left or right hand orientation
Fits 1/8in or 1/4in (0.3 or 0.6cm) panel material - include templates for installation with 1in (2.54cm) spacing between parallel tracks
Green/yellow LED indicator - adjustable display to match Switch Machine settings
Single pushbutton operation
Complete instructions with mounting template - use with Control System Turnout Drill Set (#942-140, sold separately)
Connecting cable included - easily expanded with Extension Cable (#942-113, sold separately)
D13J Decoder - 1.2 Amp with NMRA 9 pin DCC Quick Plug and Harness
Dimensions: 1.03 x 0.630 x .185 inches (26 x 16.5 x 4.7 mm)
Features of this decoder:
- Silent Running, torque compensated motor drive
- Torque Compensation for ultra smooth low speed performance
- Motor rating 3/4 Amp continuous, 1.2 Amp stall
- All four function outputs have lighting effects generators
Squealer - Motion Activated Flange Squeal System
The Squealer is a true motion-detecting flange squeal system. Using professionally recorded and edited flange squeal, the Squealer brings authentic trackside sound of steel wheels against rails for ultimate realism. The system uses a micro motion detector between the ties to sense train movements and play either the built-in professional sounds or user-defined sounds for maximum flexibility. Modelers now have the ability to recreate all the trackside audio ambience that has been missing from our model worlds.
Placed in locations on the layout where flange squeal is most likely to occur, the Squealer takes the immersive layout experience to a new level. Use individually (with one or more sensors) or place several Squealer systems together to get an all-encompassing stereo effect. The professionally recorded and edited built-in sounds provide a basic sound landscape for most situations, but custom sounds can also be loaded using a microSD card. The possibilities are only limited by your imagination!
Features:
- True motion-detecting operation: only squeals when something is moving
- Simple, discrete under-track installation
- Professionally recorded and edited flange squeal sounds play randomly
- Sounds fade smoothly when activated or deactivated
- Custom sounds can be loaded using a microSD card
- Comes complete with sensor, speaker, and control board
- Powered from 5V to 24VDC
- Additional motion sensors available
Typical Applications:
- Mainline curves
- Yards
- Tight industrial trackage
Specifications: (L x W x H)
Control Board: 3.75 x 2.25 x 0.5 inches
Speaker: 1.25 x 1.25 x 1 inches
Motion Sensor: 2.25 x 0.25 x 0.25 inches
Walthers Cornerstone Turntable Control Box
For Walthers Turntables produced 2016 or later
Use on layouts with DC or DCC train control
Simple operation & programming with:
- Programmable indexing for up to 99 different tracks
- One-touch 180-degree bridge rotation in either direction
- Simplified LED display with adjustable brightness
Operate turntable (sold separately) from up to four remote locations with additional Control Boxes
For more information and accessories go to Walthers Web site
Cornerstone Advanced Turntable Control Module
Motorized 110 Ft Turntable
ESU Super thin cable,0.02inch 0.5mm dia. AWG36 multi-stran 30FT 10m All DCC colours available. White
Edge Connector for Tortoise(TM) Switch Machine w/Tan PC Board (2pk)
PLEASE NOTE - this Edge Connector is designed for use with Tortoise(TM) switch machines manufactured before May/June 2020 that feature a tan 33mm wide PC board.
Walthers Layout Control System brings you a low-cost solution for easy turnout control for HO, N, Z, S, and O Scale layouts! The system is expandable at any time to grow with your layout, and can be used with DCC- or DC-power (a DCC accessory decoder is integrated into the switch machine). The system uses plug-and-play servo-style wiring with connectors, so no soldering is needed; two styles of cables are available separately to expand your wiring as needed. User-friendly instructions are included with all items, and drilling templates for easy mounting on your layout or fascia are included as appropriate. Using combinations of the system components, which include servo-based slow-motion Switch Machines, Power Distribution Block, LED panel indicator/control pushbutton switches, add-on system cabling, a 2-amp 12V Filtered DC Power Supply and a three-piece drill set, you can easily build a complete control system.
Designed to simplify converting your existing Tortoise(TM) Switch Machine, the Edge Connector features:
- Plug and play wiring for Tortoise(TM) Switch Machines manufactured before June 2020 with smaller, tan PC board (sold separately).
- Includes 6 inch motor connection cable with plug for direct connection to Stall Motor Controller 942-161 (sold separately).
ESU Cable Harness with 8 pin socket according to NEM 652, DCC Colour Wire, Length = 11.81inch 30cm
USB Interface
For computer programming and/or operation of Power Cab equipped layouts.
Hardware requirements: Requires the NCE Power Cab, a USB cable, and computer.
Our new adapter board 3 for decoders with 21MTC interface is best suited for everyone intending to digitise a loco without interface but with many functions without having to carry out major soldering work. With its compact dimensions of 30.5mm x 15.5mm it is almost the same size as the decoder and also equipped with an extra mounting lug that can be easily broken off if not required.
The board is equipped with amplifiers (about 250mA each) for the function outputs AUX3 through AUX6, which are only provided as logic outputs on all VHDM, NEM resp. NMRA compliant decoders. Thus the board offers the option of up to 8 outputs.
For easy handling and wiring the most important contacts are already equipped with 200mm long wires.
Dimensions: Length 31.0mm x 15.5mm (With mounting tabs: 36.0mm x 15.5mm)
HO LokPilot 5 DCC/MM/SX/M4, 8-pin NEM652
The LokPilot 5 is the most important representative of the LokPilot family and is suitable for almost all questions in locomotives of gauge H0 and 0.
LokPilot 5 decoders are offered with all common interfaces.
MODES:
The LokPilot 5 is a real multi-protocol decoder. He masters the data format DCC as well as Motorola®, Selectrix® and M4. In DCC format, 14 to 128 speed steps are as natural as 2 and 4-digit addresses and up to 32 functions. Thanks to RailComPlus®, the decoders log on to a suitable digital center fully automatically.
It masters all DCC programming modes and, thanks to RailCom®, the CV values on the main track can be read out with suitable control centers. Auxiliary registers exist for control centers that can only program CVs from 1-255.
Motorola® users benefit from up to 28 speed steps with 255 addresses. Three additional Motorola® addresses enable the activation of 16 functions. A built-in programming mode also makes reprogramming possible with the venerable Control Unit 6021.
The M4 protocol enables automatic registration at mfx®-compatible control centers. All 32 possible function keys are offered here.
The LokPilot 5 decoder recognizes the Marklin® braking distances as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake modules or with DC voltage is also possible. It also stops with a Selectrix® brake diode. An ABC automatic shuttle train enables automatic commuting between two stations.
The LokPilot 5 decoder can be used on analog DC and AC railways.The decoder switches between the operating modes fully automatically on-the-fly. Usually nothing needs to be set.
FEATURES:
We know that you want your locomotives to be as realistic as possible. Therefore, we packed the LokPilot 5 with function outputs. Depending on the interface version, each LokPilot 5 decoder offers at least 10 amplified function outputs with 250mA output current each. In the versions with PluX22 or 21MTC interface, 4 outputs are added to control servos or logic level outputs. All important lighting functions are available. The brightness of each output can be set separately. The decoder masters the automatic pressing and detaching when uncoupling for ROCO®, Krois® and Telex® couplings.
MOTOR CONTROL:
The engine control of the LokPilot 5 has been fundamentally improved again. A variably adjustable PWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors - the typical hum is a thing of the past. The load control can now be adapted to difficult cases with up to 10 CVs. The unique Autotune function enables the decoder to be automatically calibrated to the motor. With up to 1.5A motor current, the LokPilot 5 decoder provides enough juice even for older motors.
OPERATIONAL SAFETY:
On request, a PowerPack can be connected to the LokPilot 5 to bridge dirty rail sections.
PROTECTION:
Of course, all function outputs and the motor output are protected against overload. We want you to enjoy your decoder for as long as possible.
NixTrainz Decoder Buddy V5
The V5 has 12 Aux outputs for lights. Twelve are present on the small connector board and two are paired to the motherboard and associated with the frame. The track and speaker pads stayed the same size. The pads on the small connector board got a little smaller. These pads are all separated and have holes to help hold the wires. The stay alive pads moved to the other side of the motherboard out from under the decoder and are in an easy place to solder to like the original. From a little closer to the situation than I used to be, I might say a Steam / Diesel split might align with the two Decoder Buddys as well as a 1997 date split between the two due to ditch light requirements by the FRA. Both are exactly the same size. You get to make the choice! Fortunately both Decoder Buddys have been accepted by both installers and modelers.
Small w/Attached D13NHP Decoder
Direct plug in to locos equipped with NMRA 8 pin plug
Features of this decoder:
NCE No-Halt_Insurance technology, keeps locos moving over dirty track
Supplied as two pre-wired modules for easier, more flexible installation
Silent RunningTM,torque compensated motor drive
Motor rating 1.3 Amp continuous, 2 Amp peak (stall)
All four function outputs have lighting effects generators
Select from 15 different lighting effects
Full support for LED lighting
LokSound 5 Fx DCC/MM/SX/M4 Blank Decoder 21MTC NEM660 with Speaker
Note: Please write in the customer notes if you want a sound file programmed and with the locomotive description and/or ESU Sound File Number.
The LokSound 5 Fx is a special feature of the LokSound family: it has no output and is specially designed for use in control cars or drive heads, which require a sound but do not have a model drive themselves. By omitting the engine part, it can still offer all the sound features of the other LokSound 5 members on a size of only 21.5mm x 15.5mm.
LokSound 5 Fx decoders are offered with an 8-pole interface according to NEM652 or a 21MTC cutting point and always come with an 11 x 15 mm sugar cube loudspeaker and sound capsule kit.
Modes:
Like all family members, the LokSound 5 Fx is a true multi-protocol decoder. It masters the DCC data format as well as Motorola(R), Selectrix(R) and M4. In DCC format, 14 to 128 driving steps are as self-evident as 2- and 4-digit addresses and up to 32 functions. With the help of RailComPlus(R) technology, the decoders register fully automatically at a suitable digital center.
It masters all DCC programming modes and can be both driven and programmed with compatible digital centers: Thanks to RailCom(R), it is possible to read out the CV values on the main track with suitable control panels. Auxiliary registers exist for control panels that can only program the CVs from 1-255.
Motorola(R) users benefit from up to 28 driving steps at 255 addresses. Three additional Motorola(R) addresses enable the triggering of 16 functions. A built-in programming mode also makes reprogramming possible with the venerable Control Unit 6021.The M4 protocol allows automatic login to mfx(R)-compatible control panels.
The LokSound 5 Fx Decoder detects the Marklin(R) brake distances as well as ZIMO(R) HLU brake commands or the Lenz(R) ABC system. Also the brakes with DCC brake blocks or with DC voltages possible. It also stops with a Selectrix(R) brake diode. An ABC commuter train system allows automatic commuting between two stations.
The LokSound 5 decoder can be used on analog DC and AC webs.
The decoder switches on-the-fly fully automatically between operating modes. Most of the time, nothing needs to be adjusted.
Sound:
The LokSound 5 Fx decoder can play up to 12 channels simultaneously. Each channel can be resolved with up to 16 bits / 31250 kHz and offers hi-fi quality on your system. There is virtually no difference to the original audible anymore. A Class-D audio output stage with up to 3W output controls the speakers, which may have between 4 ohms and 32 ohms impedance. A 128 Mbit sound memory provides enough capacity.
All individual noises can be adjusted individually in the volume. The super-flexible sound gine without a rigid schedule allows the exemplary simulation of all conceivable rail vehicles.
Functions:
There are also some lights to turn on in the control car or drive head. Thats why we have equipped the LokSound 5 Fx with 6 reinforced function outputs. In the version with 21MTC interface, 6 outputs are added for controlling servos or logic level outputs. All important lighting functions are available. The brightness of each output can be set separately.
Motor:
Although the LokSound 5 Fx itself does not have an engine output, it still simulates one. This is used for synchronization with the motor car, where ideally a full-fledged LokSound 5 decoder performs its service. In the train bandage, this ensures that the brake squeak takes place at the same time or that the lamps also switch the direction of travel at the same time.
Operational reliability:
A PowerPack can be connected to the LokSound 5 micro DCC Direct Kato USA on request to bridge dirty rail section.
Shrink Tube Assortment (4pcs)
This assortment includes 6 inches each of 1/16, 3/32, 1/8, and 1/4 inch diameter tubing for insulating solder connections.
NCE Auto-Switch- Automatic Program Track For Power Cab
DC-21 Pin Motherboard for LEDs pkg(3)
HO/N 1 Amp SoundFX & Function Decoder
Features:
Wired Mobile Decoder with SoundFX & FX3 Function for most HO and many N scale Locomotives.
Preloaded with selectable generic steam and diesel sound schemes.
Visit Digitrax Sound Depot to learn how to customize the sound project that is included with the decoder and how to download different sound projects.
Includes 28mm 8 Ohm Speaker & 330uF Capacitor
Please Note: The SFX0416 has no motor functions and is used in conjunction with a standard mobile decoder to add sound and additional functions to the locomotive.
Regarding N Scale applications:
Although the SFX0416 decoder PCB is physically small enough to fit into many types of N Scale rolling stock and dummy locomotives, for N Scale applications the standard 28mm speaker must be replaced with a smaller speaker and installation of the capacitor can be omitted.
Finally, the SFX0416 is an add-on type SoundFX decoder, meaning it works with a standard DCC motor decoder in locomotive applications. N-Scale locomotives generally do not have the necessary space for both the SFX0416 and a motor decoder inside the locomotive. To use this sound and function decoder as an add on to an existing mobile decoder in an N Scale locomotive, you can install it in an N Scale car that runs behind the locomotive. If you are installing a sound decoder in a locomotive that does not already have a mobile decoder, one of our N Scale motor, sound & function decoders would be the best choice for N scale locomotive installations.
SPECIFICATIONS:
Current Rating-Motor - Not a motor decoder
Size - 1.22 x 0.42 x 0.21 inches (31mm x 10.6mm x 5.3mm)
Installation - Wired
Function Outputs - 4-200mA
Function Type - FX3
Speaker - 8 Ohm 28mm round
Capacitor - 330uF
Simultaneous Voices - 3
Onboard Sound Memory - 16 Megabit
NCE 160 N Scale N12-NEM 6 Pin Decoder
Plug in 4 function decoder with 6 pin NEM 651 Connector
Dimensions H 2.65 mm W 8.77 mm L including pins 19.41 mm
Soundtraxx - TSU8F -PNP Baldwin and Others, 8Function Tsunami 2 Sound Decoder - Plug and Play Form Factor
The TSU-PNP8 is a universal factory board replacement sound decoder suitable for use in many manufacturers diesel models such as those made by Atlas, Athearn, Bowser, Kato and InterMountain Models. It is suitable for a wide variety of models from HO to S scale. The TSU2-PNP8 includes a connector to easily add a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches. There are two additional function outputs added to the existing TSU2-PNP design using the same lighting circuit and processor pins added for FX7 and FX8. Lighting outputs are compatible with 12-14V bulbs, 1.5V bulbs or LEDs with external resistors.
Features:
Tsunami2 diesel sound decoders are full of new features including over 50 sound effects including engine startup and shutdown, engine prime mover through all eight notches, Straight-to-8, HEP mode, 13 bells, over 40 airhorns, 4 air compressors, dynamic brakes, radiator fans, brake squeal, and more!
Each diesel version (EMD, GE, etc.) contains up to 9 manufacturer specific prime movers (Turbo, Non-turbo, etc.)
First ever Diesel Dynamic Digital Exhaust (DDE) for a more authentic operating experience
Startup, shutdown and exhaust through 8 notches
Automatic or manual notching
Functioning dynamic brake with variable load sound and adjustable braking rate
Over 40 air horns
Selectable compressors, bells, and couplers
First ever Fireman Ed is ready to work on the locomotive, with general service, cab sounds and more!
Clickety-clack, fueling, and authentic cab chatter add realism
Prototypically correct HEP modes and steam heat for authentic passenger train operations
Tsunami2 Overview:
The Tsunami2 is an all-new premium flagship decoder from SoundTraxx, packed with many new features and sound effects to help enhance the realism and fun with both sound and operation. Tsunami2 leads the industry in processing power with a 32-bit processor that provides the necessary horsepower to support 28 functions, 16 polyphonic sound channels, tons of sound and lighting effects, and advanced motor control.
Tsunami2 Digital Sound Decoders integrate a full-featured sound system, Hyperlight lighting effects, Hyperdrive2 advanced motor control, and a DCC decoder into a single package. Tsunami2 Digital Sound Decoders offer over 50 individual sounds, and over 20 lighting effects in each model!
We have added a host of new recordings including: whistles, horns, bells, compressors – and remastered favorites from years past. These new recordings provide nearly limitless choices for your customer! Multiple prototypes in every model means no time spent on a computer downloading files or purchasing special programs. In addition, more powerful audio output, two volume mixers, and our ever-popular Equalizer make the digitized recordings of real engines loud, clear and ultra-flexible.
Digitrax DH126PS 1.5 Amp Economy HO Scale Short Harness 1 inch long, 8 PIN Mobile Decoder
Specifications
Current Rating-Motor1.5/2.0 Amps MaxSize.672†x 1.074†x .259†(17.08mm x 27.28mm x 6.6mm)Installation Digitrax 9 pin to wires Function Outputs 2
Function TypeFX3
Features Series 6
Warranty - No Worries Warranty
TSU-2200 Tsunami 2 Sound Decoder, 2 Amp, ALCO Diesel Locomotives
The TSU-2200 is a versatile Digital Sound Decoder that is suitable for a wide variety of models from HO to S scale. You will feel like you are in the cab with the amazing new features that Tsunami2 has to offer including: Reactive Dynamic Digital Exhaust, Functioning locomotive and train brakes, injectors, power reverse, and firebox flicker. We also offer a large selection of selectable sound effects including: exhaust chuffs (10), prime movers (up to 12), bells (12), Whistles (90), airhorns (40+), couplers, dynamos and more!
This 2-amp, universal-style format, and includes a connector to easily add a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.
Product Specifications:
Dimensions: 35 x 18 x 6mm
Max. Motor Stall Current: 2A
Max. Function Current: 100mA (each output)
Function Outputs: 6
Audio Amplifier: 2 Watt, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
Sound Channels: 16
ESU Super thin cable,0.02inch 0.5mm dia. AWG36 multi-stran 30FT 10m All DCC colours available. Gray
Product Information
The LokSound by ESU Super Thin Wire is AWG 36, .5mm, 36AWG super flexible wire. It comes in a 30Ft 10m roll and is matched to common DCC colors.
SoundBytes Transformer Hum
The SoundBytes Transformer Hum is a simple, fully self-contained sound module that plays a background hum reminiscent of an electrical transformer or substation. Add some ambiance to your layouts electrical infrastructure!
Best played at a low, understated volume.
FEATURES:
- Integrated speaker & volume control
- Easy to install and use
- Powered from 5V to 24V
Electrical Connections:
The SoundBytes module needs 5-24 volts of clean direct current (DC) power to operate. Connect the white wire to GND to activate the sound. Leave the white wire disconnected when not in use.
Red Wire = 5V to 24V
Black Wire = GND
White Wire = GND to activate
Note: Please do not use old model railroad power packs as a DC supply. These often produce large output spikes far in excess of their nameplate voltage ratings, are not suitable for powering modern electronics, and will damage SoundBytes modules.
The volume can be adjusted by using a small screwdriver to turn the white, square potentiometer on the PCB.
Specifications
1.25(L) x 1.25(W) x 1.25(H) inches
Tsunami 2 TSU-2200 Digital Sound Decoder for Steam Models
Dimensions: 35 by 18 by 6mm Max. Motor Stall Current: 2A
Max. Function Current: 100mA (each output) Function Outputs: 6
Audio Amplifier: 2 Watts, 8-Ohm Load DCC Track Voltage: 7.5V – 22V
Speakers
The TSU-2200 is a universal 2-amp Digital Sound Decoder. It is suitable for a wide variety of models from HO to S scale, and includes a connector to easily add a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.
ProtoThrottle Receiver for ESU CabControl, JMRI WiFi Throttle, and Digitrax LNWI
This receiver connects the ProtoThrottle to an ESU CabControl system, Digitrax LNWI, JMRI WiThrottle server (a.k.a. Engine Driver or other phone throttle applications), or other DCC systems that expose a WiThrottle-compatible server, such as the MRC Prodigy WiFi, or DCC-EX. It receives the wireless signal(s) from multiple ProtoThrottles and translates them to be sent to the command station over the WiFi network.
The MRBW-WIFI includes a mini USB cable and 5V/1A USB power supply with a North American plug.
Specifications:
3.5(L) x 2.3(W) inches
Digital Sound Decoder for EMD-2 Diesels - size 1-1/16 x 13/32 x 3/16 inches - 27 x 10.5 x 5mm
This SoundTraxx TSU-1100 Tsunami2 Digital Sound & Control Decoder features a spectrum of prototypical sounds, 16-bit polyphonic sound processor, 14 hyperlight lighting effects and hyperdrive motor control with back-EMF. This micro 1-amp, universal-style format is ideal for small models with minimal space. The TSU-1100 includes an optional capacitor or can be wired to a CurrentKeeper 678-810140 to maintain performance over dirty track and switches.
9 EMD Prime Movers
Dimensions:
Max. Motor Stall Current: 1A
Function Outputs: 6
Max. Function Current: 100mA (each output)
Audio Amplifier: 2 Watts, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
16-bit Digital Sound
1A Motor Stall Current
Over 50 Sound Effects with Selectable Reverb
Functioning Engine, Train and Dynamic Brakes
Reactive Dynamic Digital Exhaust
6 Function Outputs with over 20 Hyperlight Effects
Hyperdrive2 Advanced Motor Control
DCC Track Voltage 7.5V – 22V
No speaker included
Decoder Buddy w/LokSound - Version 5
Dimensions:
Width: O.67in
Length: 2.20in
Height: 0.35in
(17 mm x 56 mm x 9 mm)
Height may vary slightly
depending on decoder.
ESU Super thin cable,0.02inch 0.5mm dia. AWG36 multi-stran 30FT 10m All DCC colours available. Brown
Product Information
The LokSound by ESU Super Thin Wire is AWG 36, .5mm, 36AWG super flexible wire. It comes in a 30Ft 10m roll and is matched to common DCC colors.
SoundTraxx - Ultra Flexible Hookup Wire, 10ft 30AWG, White
Available in 10-foot lengths, this ultra-flexible 30AWG wire makes decoder installations a breeze.
Screw Terminal Kit for PSX or PSXX Power Shield Circuit Breakers (6pcs)
A complete screw terminal kit for a single PSX or PSXX circuit breaker. For example, if you order a PSXX2, order two Screw Terminal kits. Each kit comprises 22 PINS so you can easily wire your LEDs, Opto Sensors, and other hardware to the PSX Circuit Breaker.
Signal Attachment Cable - All Scales Signal System
Soundtraxx 810163 JST-N18 Adapter
This adapter is designed to make installing a TSU-N18 decoder a breeze! It will work with the current size TSU-N18 decoders and the new smaller boards as well. The adapter is two sided: One side has a 7-pin wire harness and a NEXT18 socket to plug in a TSU-N18 decoder. The back side has soldering pads for speakers, CurrentKeeper, and lights.
Dimensions: 16 x 9.5 x 5mm
Function Outputs: 6
Max Function Current: 100mA (ea. Output)
UTP Panel Cab Bus Fascia Panel w/RJ12 Plugs
FEATURES:
The UTP cab bus panel provides a low cost means of adding walk around capability to your layout. The panel has 4 RJ-12 connectors wired in parallel, two on the front and two on the rear. Your cab bus can be daisy-chained from one panel to the next using the rear connectors. One or two cabs can then be plugged in to the front connectors. Please note the Command Station side versus the More UTP panels side when wiring your panels. The UTP can also be used as a cab bus splitter.
If any cab bus item is 30 feet of cable or more from the command station you will need to inject power into the cab bus to make sure a clean signal of minimum 8v gets out to the the devices on the cab bus.
The regular UTP - 1/8inch (3.5mm) (Mono mini headphone jack) on the back of the UTP. The tip of the plug is positive (+) and the sleeve is negative.
If you have a regular UTP but want to add the P114 for added cab bus power, you will need to hack off the end and add the male 1/8inch (3.5mm) (Mono mini headphone plug) or solder the P114 directly to the board.
Additional power for the Cab Bus can be added to the socket in between the Cat5 sockets. We suggest a 1/2 to 2 Amp, 12 to 14Volt, Regulated DC power supply such as the NCE P114. (5.5/2.5mm plug center +).
